Product Name: |

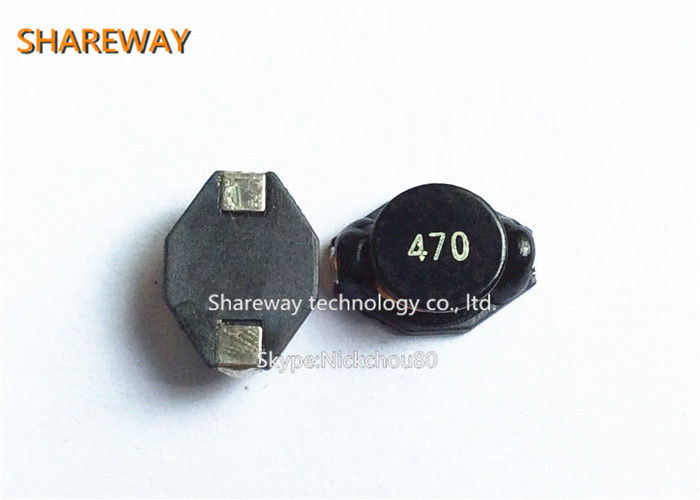

MOX-UPI-1306 SERIES Surface Mount High Current Power Inductors With RoHS |
Application: |
DC-DC Converter |
Size: |
18.54*15.24*7.11mm |
Inductance: |
1 - 1000uH |
Weight: |
600mg |
Core Material: |
Ferrite |
Product Name: |
MOX-UPI-1306 SERIES Surface Mount High Current Power Inductors With RoHS |
Application: |
DC-DC Converter |
Size: |
18.54*15.24*7.11mm |
Inductance: |
1 - 1000uH |
Weight: |
600mg |
Core Material: |
Ferrite |
MOX-UPI-1306 SERIES surface mount high current power inductors with RoHS
Description:
UPI-1306 surface mount power inductors are engineered for the stringent
high current requirements of step up and step down transformers, notebook
computers and various other handheld devices. MoxiE offers a unique industrial
design to meet the most robust applications. The MOX-UPI-1306 is available in
a wide range of inductance values to meet your design requirements.
Features
ELECTRICAL SPECIFICATIONS
| Part Number | Available Tolerances |
Inductance (uH) |
Test Freq. (MHz) |
SRF |
DC Resistance ± 15% (Ω) |
Isat¹ (A) |
Irms² (A) |
| MOX-UPI-1306-1R0M | 20(M) | 1.0 | 100 KHz,0.1 V | 80 | 0.011 | 20 | 8.6 |
| MOX-UPI-1306-2R2M | 20(M) | 2.2 | 100 KHz,0.1 V | 80 | 0.014 | 16 | 7.1 |
| MOX-UPI-1306-3R3M | 20(M) | 3.3 | 100 KHz,0.1 V | 60 | 0.016 | 14 | 6.2 |
| MOX-UPI-1306-5R6M | 20(M) | 5.6 | 100 KHz,0.1 V | 40 | 0.022 | 12 | 5.3 |
| MOX-UPI-1306-100M | 20(M) | 10.0 | 100 KHz,0.1 V | 30 | 0.032 | 10 | 4.3 |
| MOX-UPI-1306-150M | 20(M) | 15.0 | 100 KHz,0.1 V | 22 | 0.036 | 8.0 | 4.0 |
| MOX-UPI-1306-220M | 20(M) | 22.0 | 100 KHz,0.1 V | 20 | 0.047 | 7.0 | 3.5 |
| MOX-UPI-1306-330M | 20(M) | 33.0 | 100 KHz,0.1 V | 15 | 0.066 | 5.5 | 3.0 |
| MOX-UPI-1306-470M | 20(M) | 47.0 | 100 KHz,0.1 V | 9 | 0.087 | 4.5 | 2.6 |
| MOX-UPI-1306-680M | 20(M) | 68.0 | 100 KHz,0.1 V | 8 | 0.13 | 3.5 | 2.3 |
| MOX-UPI-1306-101M | 20(M) | 100.0 | 100 KHz,0.1 V | 7 | 0.19 | 3.0 | 1.8 |
| MOX-UPI-1306-151M | 20(M) | 150.0 | 100 KHz,0.1 V | 6 | 0.25 | 2.6 | 1.5 |
| MOX-UPI-1306-221M | 20(M) | 220.0 | 100 KHz,0.1 V | 5 | 0.38 | 2.4 | 1.2 |
| MOX-UPI-1306-331M | 20(M) | 330.0 | 100 KHz,0.1 V | 4 | 0.56 | 1.9 | 1.0 |
| MOX-UPI-1306-471M | 20(M) | 470.0 | 100 KHz,0.1 V | 3 | 0.85 | 1.4 | 0.82 |
| MOX-UPI-1306-681M | 20(M) | 680.0 | 100 KHz,0.1 V | 2.5 | 1.2 | 1.2 | 0.72 |
| MOX-UPI-1306-102M | 20(M) | 1000.0 | 100 KHz,0.1 V | 2 | 1.8 | 1.0 | 0.56 |
