Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Model Number: MOX-UPI-0402 SERIES
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MOX-UPI-0402 SERIES Wirewound Inductor For Notebook Computers |
Type: |
Wirewound Inductor |
Application: |
Notebook Computers |
Family: |
Fixed Inductors |
Irms: |
0.07 - 2.9A |
Operating Temperature Range: |
–40°C To +85°C. |
Product Name: |
MOX-UPI-0402 SERIES Wirewound Inductor For Notebook Computers |
Type: |
Wirewound Inductor |
Application: |
Notebook Computers |
Family: |
Fixed Inductors |
Irms: |
0.07 - 2.9A |
Operating Temperature Range: |
–40°C To +85°C. |

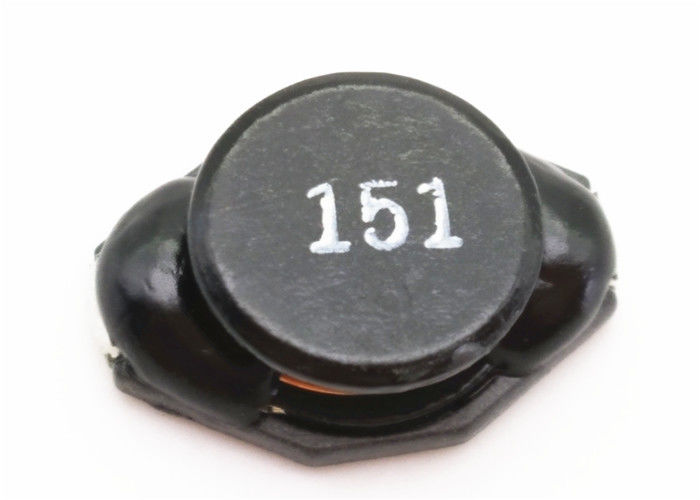

MOX-UPI-0402 SERIES Wirewound Inductor for notebook computers
Description:
UPI-0402 surface mount power inductors are engineered for the stringent high current requirements of step up and step down transformers, notebook computers and
various other handheld devices. We offers a unique industrial design to meet the most robust applications. The MOX-UPI-0402 is available in a wide range of inductance values to meet your design requirements.
Features:
| Part Number |
Available Tolerances |
Inductance (uH) |
Test Freq. (kHz) |
SRF (MHz) |
DC Resistance ± 15% (Ω) |
Isat (A) |
Irms (A) |
| MOX-UPI-0402-1R0M | 20% (M) | 1.0 | 100 KHz,0.1 V | 130 | 0.05 | 2.90 | 2.90 |
| MOX-UPI-0402-1R5M | 20% (M) | 1.5 | 100 KHz,0.1 V | 115 | 0.05 | 2.60 | 2.80 |
| MOX-UPI-0402-2R2M | 20% (M) | 2.2 | 100 KHz,0.1 V | 90 | 0.07 | 2.30 | 2.40 |
| MOX-UPI-0402-2R7M | 20% (M) | 2.7 | 100 KHz,0.1 V | 80 | 0.08 | 2.20 | 2.25 |
| MOX-UPI-0402-3R3M | 20% (M) | 3.3 | 100 KHz,0.1 V | 70 | 0.08 | 2.00 | 2.00 |
| MOX-UPI-0402-4R7M | 20% (M) | 4.7 | 100 KHz,0.1 V | 50 | 0.09 | 1.50 | 1.50 |
| MOX-UPI-0402-6R8M | 20% (M) | 6.8 | 100 KHz,0.1 V | 45 | 0.13 | 1.20 | 1.40 |
| MOX-UPI-0402-100M | 20% (M) | 10.0 | 100 KHz,0.1 V | 35 | 0.16 | 1.10 | 1.10 |
| MOX-UPI-0402-150M | 20% (M) | 15.0 | 100 KHz,0.1 V | 30 | 0.23 | 0.90 | 1.20 |
| MOX-UPI-0402-220M | 20% (M) | 22.0 | 100 KHz,0.1 V | 20 | 0.37 | 0.70 | 0.80 |
| MOX-UPI-0402-330M | 20% (M) | 33.0 | 100 KHz,0.1 V | 15 | 0.51 | 0.58 | 0.60 |
| MOX-UPI-0402-470M | 20% (M) | 47.0 | 100 KHz,0.1 V | 14 | 0.64 | 0.50 | 0.50 |
| MOX-UPI-0402-680M | 20% (M) | 68.0 | 100 KHz,0.1 V | 11 | 0.86 | 0.40 | 0.40 |
| MOX-UPI-0402-101M | 20% (M) | 100.0 | 100 KHz,0.1 V | 9 | 1.27 | 0.31 | 0.30 |
| MOX-UPI-0402-151M | 20% (M) | 150.0 | 100 KHz,0.1 V | 6 | 2.00 | 0.27 | 0.25 |
| MOX-UPI-0402-221M | 20% (M) | 220.0 | 100 KHz,0.1 V | 5.5 | 3.11 | 0.22 | 0.20 |
| MOX-UPI-0402-331M | 20% (M) | 330.0 | 100 KHz,0.1 V | 5 | 3.80 | 0.18 | 0.16 |
| MOX-UPI-0402-471M | 20% (M) | 470.0 | 100 KHz,0.1 V | 4 | 5.06 | 0.16 | 0.15 |
| MOX-UPI-0402-681M | 20% (M) | 680.0 | 100 KHz,0.1 V | 3 | 9.20 | 0.14 | 0.12 |
| MOX-UPI-0402-102M | 20% (M) | 1000.0 | 100 KHz,0.1 V | 2 | 13.80 | 0.10 | 0.07 |
MOX-UPI-0402 SERIES Wirewound Inductor for notebook computers
Dimensions:
