Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Model Number: 78615/9C
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
78615/9C Surface Mount Option General Purpose Pulse Transformers |
Type: |
General Purpose Pulse Transformers |
Application: |
Small Isolated Power Supplies |
Size (DIL): |
9*10.1*6.3mm |
Size (SMD): |
12.7*9*6.3mm |
Construction: |
Toroidal Construction |
Product Name: |
78615/9C Surface Mount Option General Purpose Pulse Transformers |
Type: |
General Purpose Pulse Transformers |
Application: |
Small Isolated Power Supplies |
Size (DIL): |
9*10.1*6.3mm |
Size (SMD): |
12.7*9*6.3mm |
Construction: |
Toroidal Construction |

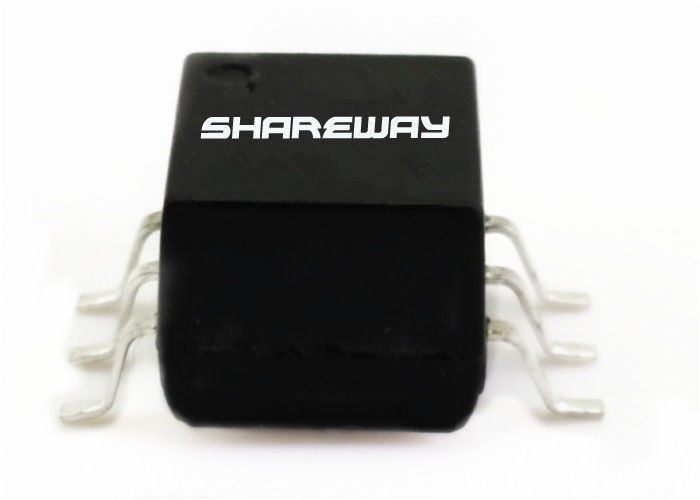

78615/9C Surface mount option General Purpose Pulse Transformers
Description:
The 786 series is a comprehensive range of
general-purpose pulse transformers. Common
applications include line coupling, matching or
isolating. The devices can also be used in small
isolated power supplies and also as common mode
chokes in filtering applications.
FEATURES
Part no. | Turns Ratio |
Min. (μH) |
Primary Min. (Vμs) |
Typ. (μH) |
Typ. (pF) |
Max. (Ω) |
Isolation (Vrms) |
78601/4C | 1:1 | 67 | 4 | 0.19 | 8 | 0.17 | 1000 |
78601/3C | 1:1 | 200 | 6 | 0.20 | 14 | 0.25 | 1000 |
78601/2C | 1:1 | 500 | 10 | 0.25 | 22 | 0.34 | 1000 |
78601/8C | 1:1 | 1000 | 15 | 0.29 | 35 | 0.45 | 1000 |
78601/1C | 1:1 | 2000 | 20 | 0.47 | 49 | 0.60 | 1000 |
78601/16C | 1:1 | 4000 | 28 | 0.47 | 78 | 0.84 | 1000 |
78601/9C | 1:1 | 10000 | 56 | 0.86 | 121 | 1.30 | 1000 |
78602/4C | 1:1:1 | 67 | 4 | 0.11 | 12 | 0.18 | 1000 |
78602/3C | 1:1:1 | 200 | 6 | 0.17 | 19 | 0.24 | 1000 |
78602/2C | 1:1:1 | 500 | 10 | 0.27 | 32 | 0.34 | 1000 |
78602/8C | 1:1:1 | 1000 | 15 | 0.35 | 47 | 0.46 | 1000 |
78602/1C | 1:1:1 | 2000 | 20 | 0.60 | 72 | 0.66 | 1000 |
78602/16C | 1:1:1 | 4000 | 28 | 0.71 | 116 | 0.92 | 1000 |
78602/9C | 1:1:1 | 10000 | 56 | 0.71 | 167 | 1.34 | 1000 |
78604/4C | 2:1 | 67 | 4 | 0.41 | 4 | 0.18 | 1000 |
78604/3C | 2:1 | 200 | 6 | 0.49 | 9 | 0.25 | 1000 |
78604/2C | 2:1 | 500 | 10 | 0.65 | 13 | 0.34 | 1000 |
78604/8C | 2:1 | 1000 | 15 | 0.76 | 20 | 0.46 | 1000 |
78604/1C | 2:1 | 2000 | 20 | 0.99 | 29 | 0.60 | 1000 |
78604/16C | 2:1 | 4000 | 28 | 1.61 | 50 | 0.85 | 1000 |
78604/9C | 2:1 | 10000 | 56 | 1.64 | 72 | 1.23 | 1000 |
78613/4C | 1CT:1 | 67 | 4 | 0.30 | 7 | 0.20 | 1000 |
78613/3C | 1CT:1 | 200 | 6 | 0.65 | 12 | 0.25 | 1000 |
78613/2C | 1CT:1 | 500 | 10 | 1.07 | 20 | 0.36 | 1000 |
78613/8C | 1CT:1 | 1000 | 15 | 1.13 | 35 | 0.48 | 1000 |
78613/1C | 1CT:1 | 2000 | 20 | 1.53 | 47 | 0.63 | 1000 |
78613/16C | 1CT:1 | 4000 | 28 | 1.98 | 64 | 0.88 | 1000 |
78613/9C | 1CT:1 | 10000 | 56 | 3.83 | 72 | 1.33 | 1000 |
78615/4C | 1CT:1CT | 67 | 4 | 1.21 | 3 | 0.17 | 1000 |
78615/3C | 1CT:1CT | 200 | 6 | 3.64 | 5 | 0.24 | 1000 |
78615/2C | 1CT:1CT | 500 | 10 | 6.86 | 7 | 0.34 | 1000 |
78615/8C | 1CT:1CT | 1000 | 15 | 11.9 | 10 | 0.45 | 1000 |
78615/1C | 1CT:1CT | 2000 | 20 | 16.0 | 16 | 0.60 | 1000 |
78615/16C | 1CT:1CT | 4000 | 28 | 37.7 | 20 | 0.87 | 1000 |
78615/9C | 1CT:1CT | 10000 | 56 | 44.5 | 19 | 1.33 | 1000 |
