Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS
Model Number: TG10G-S100NJ
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
TG10G-S100NJ 10GBASE-T Ethernet Transformer / CMR Choke With RoHS |
Mounting Type: |
Surface Mount |
Pin: |
12+12 |
Terminal: |
Tinned |
Port: |
Single |
Hi-pot: |
1500 |
Product Name: |
TG10G-S100NJ 10GBASE-T Ethernet Transformer / CMR Choke With RoHS |
Mounting Type: |
Surface Mount |
Pin: |
12+12 |
Terminal: |
Tinned |
Port: |
Single |
Hi-pot: |
1500 |

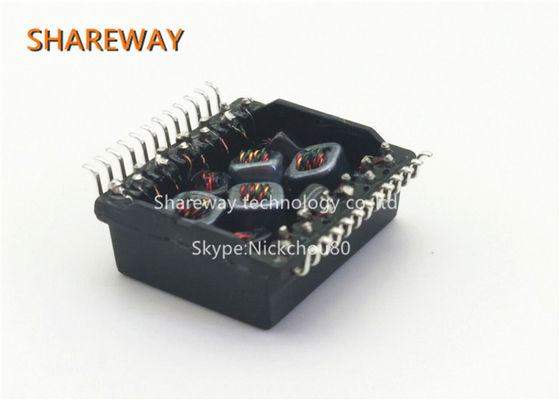

TG10G-S100NJ 10GBASE-T Ethernet Transformer / CMR Choke with RoHS
10GBASE-T Transformer:
By Transmission Speed:, 10Base-T, 10/100Base-T, GigabitBase-T, 10GBase-T, By Number of integrated ports:, Single Port, Dual Port, Quad Port, Five Port
* 10GBase-SR uses optical modules with 850nm lasers to work over multi-mode fiber.
* 10GBase-LR uses optical modules with 1310nm lasers to work over single-mode fiber.
* 10GBase-LRM uses optical modules with 1310nm lasers and works over multi-mode fiber.
* 10GBase-ER uses optical modules with 1550nm lasers and works over single mode fiber with reach up to 40km.
* 10GBase-KX4 which operates over four copper backplane lanes with distance up to 1 meter
* 10GBase-KR which operates over a single backplane lane with distance up to 1 meter
* 10GBase-T, which operates over Category 6 (Cat6) and Category 6A (Cat6A) twisted pair copper cabling with distance up to 100 meters.
| Part Number | Data Rate | Total Power1 | Current Per Pair | Operating Temp | Max Height |
| TG10G-S100NJ | 10G | - | - | 0 to 70°C | 6.35mm |
Notes:
1 Power rating reduced to half when using only two pairs for power as in 802.3af/802.3at applications.
2. Can be used in -40 to +85°C for non-PoE applications.
Dimensions:
