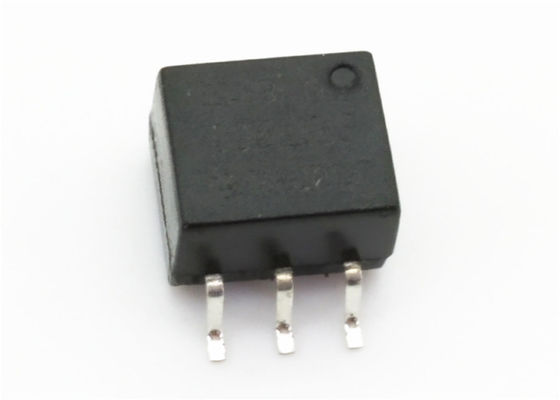

Black Base Switch Mode Transformer DA101C / DA102C Low Profile For Video Games

Black Base Switch Mode Transformer DA101C / DA102C Low Profile For Video Games
Black Base Switch Mode Transformer DA101C / DA102C Low Profile For Video Games Black Base Switch Mode Transformer DA101C / DA102C Low Profile For Video Games

Large Image :  Black Base Switch Mode Transformer DA101C / DA102C Low Profile For Video Games

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS
Model Number: DA101C / DA102C

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Detailed Product Description
Part Number: Switch Mode Transformer DA101C / DA102C Low Profile For Video Games Application: Video Games
Base: Black Base Feature: Low Profile
Mount: SMT Sample: Free
High Light:

6 pin transformer

,

small isolation transformer

Switch Mode Transformer DA101C / DA102C Low profile for video games


DESCRIPTION:
The Digital Audio Range of transformers is
designed to improve the balance of transmitter
and receiver circuitry in hi-fi equipment,
video games and other applications requiring
high-performance digital audio transmission.
Compliant with AES/EBU recommendations for the
digital audio interface, offering optimised shunt
capacitance between primary and secondary
windings. Capable of operating over the audio
data rate frequency range, providing isolation from
50-60Hz noise.





Code Turns Ratio

Primary

Inductance

mH

Max.

Leakage

Inductance

(100kHz, 10mV)

μH

Min. Volt-time
Product, Et

Vμs

Min. Return Loss
(100kHz-3MHz)

dB

Typ. Common
Mode Rejection
(100kHz, 110Ω)

dB

Isolation
(Flash tested
for 1 second)

Vrms

DA101C 1:1 1.00 - 2.06 0.26 15 46.80 52.10 2000
DA102C 1:1 2.00 - 3.90 0.39 20 40.40 49.70 2000
DA103C 1:1 4.00 - 7.75 0.91 28 36.30 46.40 2000
