Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: 84473C
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
84473C Electronic Components SMD Power Inductor For LED Driver |
Application: |
LED Driver |
Type: |
Electronic Components |
RoHS: Details Termination Style: |
SMD/SMT |
Shielding: |
Unshielded |
Inductance: |
10 UH |
Product Name: |
84473C Electronic Components SMD Power Inductor For LED Driver |
Application: |
LED Driver |
Type: |
Electronic Components |
RoHS: Details Termination Style: |
SMD/SMT |
Shielding: |
Unshielded |
Inductance: |
10 UH |

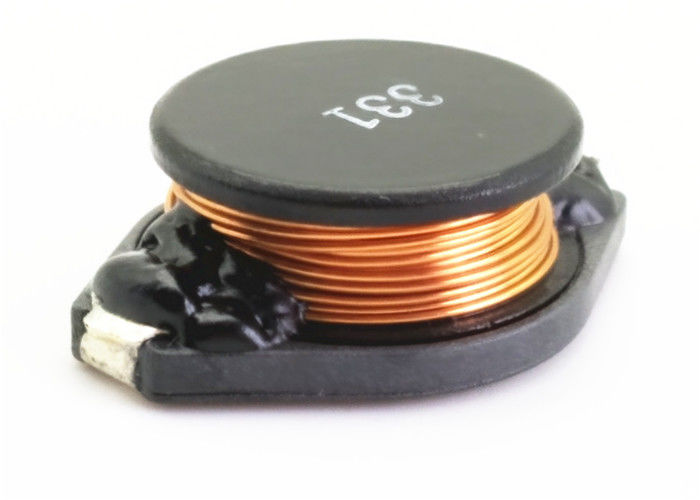

84473C electronic components SMD Power Inductor for LED driver
Description:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 KHz/ 100 mV | L | 10 | μH | ±20% |
| Rated Current | ΔT = 40 K | IR | 1.45 | A | max. |
| Saturation Current | |ΔL/L| < 10% | Isat | 1.74 | A | typ. |
| DC Resistance | @ 20°C | RDC | 0.182 | Ω | max. |
| DC Resistance | @ 20°C | RDC | 0.118 | Ω | typ. |
| Self Resonant Freq. | @ 20°C | fres | 30 | MHz | typ. |
| Rated Voltage | @ 20°C | UR | 80 | VDC | max. |
E General information:
It is recommended that the temperature of the part does not exceed 125°C under
worst case operating conditions.
•Ambient temperature: -40°C to +85°C (refering to IR)
•Operating temperature: -40°C to +125°C
•Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
•Coplanarity of the terminal pads: 120μm
•Test conditions of Electrical Properties: 20°C, 33% RH
