300mA SMD Inductance Common Mode Choke 240mOhm 80V With Signal Line

Name: 300mA SMD Inductance Common Mode Choke 240mOhm 80V With Signal Line
Brand: Shareway
SKU: Shareway
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (175 reviews)

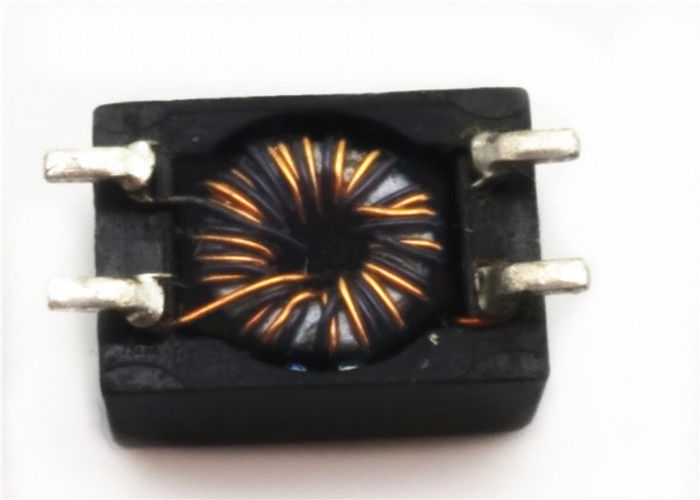

Large Image : 300mA SMD Inductance Common Mode Choke 240mOhm 80V With Signal Line

Product Details:

Place of Origin:	Guangdong,shenzhen
Brand Name:	Shareway
Certification:	RoHS,ISO9001-2001

Payment & Shipping Terms:

Minimum Order Quantity:	500/1000
Price:	Supportive
Packaging Details:	Reel/Tray
Delivery Time:	Stock Or 3 weeks
Payment Terms:	TT,Paypal,West Union
Supply Ability:	1kk-pcs/month

Contact Now

Detailed Product Description

Product Name:	SMD Inductance Common Mode Choke With Signal Line	Number Of Lines:	2
Impedance @ Frequency:	1.2 KOhms @ 135MHz	Inductance @ Frequency:	10µH @ 100kHz
Current Rating (Max):	300mA	Voltage Rating - DC:	80V
High Light:	common mode power line choke , surface mount choke , 300mA Common Mode Choke Filter

SMD inductance Common Mode Choke with Signal Line

Detailed Description:

10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1.2 kOhms @ 135MHz 300mA DCR 240 mOhm

Categories	Filters Common Mode Chokes
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	1.2 kOhms @ 135MHz
Inductance @ Frequency	10µH @ 100kHz
Current Rating (Max)	300mA
DC Resistance (DCR) (Max)	240 mOhm
Voltage Rating - DC	80V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Size / Dimension	6.50mm x 3.60mm
Height (Max)	1.80mm
