Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MOX-LAN-QP4B-8861
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Part Number: |

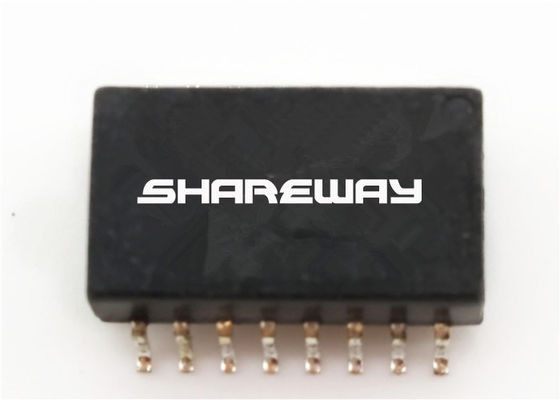

MOX-LAN-QP4B-8861 SMT Transformer Contains Both Transmit & Receive Transformers |
Transformer Style: |
Network Transformer |
PIN Quantity: |
16 |
Mounting Type: |
SMT |
Core Quantity: |
2 Pairs |
Lan Transformer Speed: |
10/100/1000 BASE-TX |
Part Number: |
MOX-LAN-QP4B-8861 SMT Transformer Contains Both Transmit & Receive Transformers |
Transformer Style: |
Network Transformer |
PIN Quantity: |
16 |
Mounting Type: |
SMT |
Core Quantity: |
2 Pairs |
Lan Transformer Speed: |
10/100/1000 BASE-TX |
MOX-LAN-QP4B-8861 SMT Transformer contains both transmit & receive transformers
Description:
| –20°+70°C Temperature Part Number |
–40°+85°C Temperature Part Number |
Turns Ratio (Pri:Sec ±5%) |
OCL (mH Minimum) |
CW/W (pF Maximum) |
LL (μH Maximum) |
DCR Pri (Ω Maximum) |
Primary Pins |
| MOX-LAN-QP4B-8861 | MOX-LAN-QP4B-8890E | 1 CT:2CT & 1 CT:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8862 | MOX-LAN-QP4B-8891E | 1 CT:2CT & 1:1.36CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8865 | MOX-LAN-QP4B-8876E | 1:1.15CT & 1 CT:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8866 | MOX-LAN-QP4B-8892E | 1:1/1.26 & 1CT:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8870 | MOX-LAN-QP4B-8893E | 1 CT:1.15CT & 1 CT:1.15CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 1-3, 6-8 |
| MOX-LAN-QP4B-8822 | MOX-LAN-QP4B-8877E | 1 CT:1 CT & 1 CT:1.5CT | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8878 | MOX-LAN-QP4B-8894E | 1 CT:1 CT & 1 CT:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8876 | MOX-LAN-QP4B-8895E | 1 CT:1.41 CT & 1 CT:1.41 CT | 1.00 & 1.00 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 16-14, 11-9 |
| MOX-LAN-QP4B-8823 | MOX-LAN-QP4B-8896E | 1 CT:1.41 CT & 1 CT:1.41 CT | 1.00 & 1.00 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 1-3, 11-9 |
| - | MOX-LAN-QP4B-8844E | 1 CT:1 CT & 1 CT:2.4CT | 1.00 & 1.00 | 30 & 30 | .80 & .80 | 0.85 & 0.85 | 9-11, 1-3 |
| - | MOX-LAN-QP4B-8897E | 1 CT:1 CT & 1 CT:1.67CT | 1.00 & 1.00 | 25 & 25 | .80 & .80 | 0.80 & 0.80 | 6-8, 14-16 |
| MOX-LAN-QP4B-8836 | - | 1 CT:1 CT & 1 CT:1.36CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 6-8, 1-3 |
| MOX-LAN-QP4B-8821 | - | 1 CT:1.5CT & 1 CT:1.5CT | 1.50 & 1.50 | 40 & 40 | .80 & .80 | 0.70 & 0.70 | 1-3, 6-8 |
| MOX-LAN-QP4B-8822 | - | 1 CT:2CT & 1 CT:2.3CT | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 0.90 & 0.90 | 6-8, 14-16 |
| MOX-LAN-QP4B-8823 | - | 2CT:1/1.26 & 2CT:1/1.26 | 1.50 & 1.50 | 40 & 40 | .50 & .50 | 0.70 & 0.70 | 1-3, 11-9 |
| MOX-LAN-QP4B-8875 | - | 2CS:1.57/2 & 2CS:1.57/2 | 1.50 & 1.50 | 40 & 40 | .50 & .50 | 0.70 & 0.70 | 1-2, 5-6 |
| MOX-LAN-QP4B-8890 | - | 1 CT:1 CT & 1 CT:1.36CT | 1.20 & 1.20 | 30 & 30 | .60 & 60 | 0.70 & 0.70 | 16-14, 6-8 |
| MOX-LAN-QP4B-8837 | MOX-LAN-QP4B-8887E | 1 CT:2.42CT & 1 CT:2.42CT | 1.20 & 1.20 | 25 & 25 | .60 & 60 | 0.70 & 0.70 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8846E | 1:2/2.4 & 1:0.79/1 | 1.00 & 1.00 | 35 & 35 | 1.00 & 1.00 | 0.80 & 0.80 | 1-3, 6-8 |
| MOX-LAN-QP4B-8886 | - | 1 CT:2.4CT & 1 CT:2.4CT | 1.20 & 1.20 | 15 & 15 | .30 & .30 | 0.30 & 0.30 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8817E | 1:2CT & 1:2CS | 1.20 & 1.20 | 35 & 35 | .50 & 1.00 | 1.00 & 1.00 | 1-3, 11-9 |
| - | MOX-LAN-QP4B-8889E | 1:1.36CT & 1:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 1.00 & 1.00 | 16-14, 6-8 |
| - | MOX-LAN-QP4B-8808E | 1 CT:2CT & 1 CT:2CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8807E | 1 CT:2CT & 1:1 | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8806E | 1 CT:2CT & 1 CT:2.42CT | 1.20 & 1.20 | 35 & 35 | .80 & .80 | 1.00 & 1.00 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8805E | 1 CT:1 CT & 1 CT:1 CT | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 0.70 & 0.70 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8804E | 1 CT:1:26CT & 1 CT:1:26CT | 1.20 & 1.20 | 30 & 30 | .60 & .60 | 0.70 & 0.70 | 1-3, 6-8 |
| - | MOX-LAN-QP4B-8803E | 1 CT:1:0.8 & 1 CT:1:0.8 | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 1.00 & 1.00 | 16-14, 11-9 |
| - | MOX-LAN-QP4B-8802E | 1 CT:1.58:2 & 1:1.65:2 | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 1.00 & 1.00 | 2-4, 6-7 |
| - | MOX-LAN-QP4B-8801E | 1 CT:1:1 & 1 CT:1:1 | 1.20 & 1.20 | 30 & 30 | .80 & .80 | 1.00 & 1.00 | 16-14, 11-9 |
