Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MDR105SG100MC
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MDR105SG100MC Shielded Surface Mount Power Inductor With 10-820uH Inductance |
Inductance: |
10-820uH |
Shield: |
Shielded |
Mount Type: |
Surface Mount Power Inductor |
Application: |
DC/DC Switches |
Current Range: |
0.24 To 2.6A |
Product Name: |
MDR105SG100MC Shielded Surface Mount Power Inductor With 10-820uH Inductance |
Inductance: |
10-820uH |
Shield: |
Shielded |
Mount Type: |
Surface Mount Power Inductor |
Application: |
DC/DC Switches |
Current Range: |
0.24 To 2.6A |

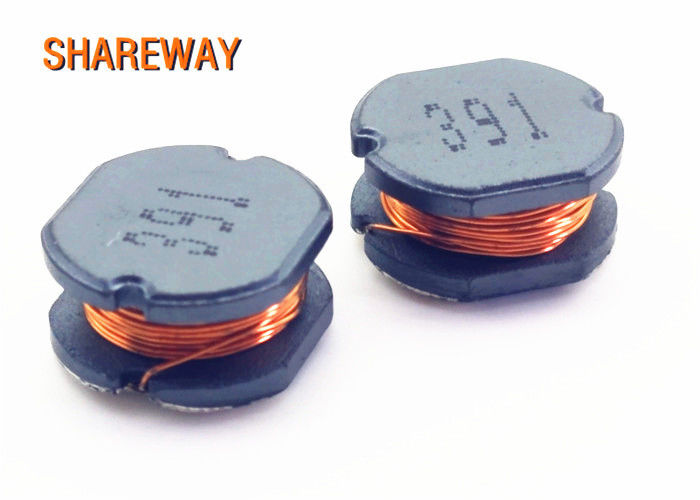

MDR105SG100MC Shielded Surface Mount Power Inductor with 10-820uh Inductance
Product description:
Power inductor Its mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition. SMD Inductance is manily used in VCR, liquid crystal screen TV, Cell phones, Notebook computers, PDA palm computers, Electronic clock Watches, DC/DC switches, OA nstallment, Flash-storing scrubbers. Can provide as per customer's requirements and conform to RoHS.
1. Various high power inductors
2. RoHS certificati
3. Lower profile
4. Shielded and Un-shielded Magnetic
5. SMT type
| Part number |
Inductance (uH) |
Tolerance (±%) |
DCR MAX (Ω) |
Isat (A) |
Irms (A) |
| MDR105SG100MC | 10 | 20 | 0.06 | 4.0 | 2.6 |
| MDR105SG150MC | 15 | 20 | 0.08 | 3.4 | 2.27 |
| MDR105SG220MC | 22 | 20 | 0.1 | 2.9 | 1.95 |
| MDR105SG330MC | 33 | 20 | 0.12 | 2.3 | 1.5 |
| MDR105SG470MC | 47 | 20 | 0.17 | 1.9 | 1.28 |
| MDR105SG680MC | 68 | 20 | 0.22 | 1.6 | 1.11 |
| MDR105SG101MC | 100 | 20 | 0.25 | 1.3 | 0.97 |
| MDR105SG151MC | 150 | 20 | 0.35 | 1.05 | 0.78 |
| MDR105SG221MC | 220 | 20 | 0.55 | 0.87 | 0.66 |
| MDR105SG331MC | 330 | 20 | 0.78 | 0.72 | 0.52 |
| MDR105SG471MC | 470 | 20 | 1.15 | 0.61 | 0.42 |
| MDR105SG681MC | 680 | 20 | 1.65 | 0.5 | 0.28 |
| MDR105SG821MC | 820 | 20 | 2.0 | 0.46 | 0.24 |
