Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MDR1206SG1R0MC
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MDR1206SG1R0MC / MDR1206SG2R2MC Magnetic Shielded Smd Power Inductor |
Material: |
Alloy Powder |
Rated Current: |
0.95 To 27.6A |
Operating Temperature: |
-40+85°C |
Application: |
Copy Machine |
Sample: |
Free Samples |
Product Name: |
MDR1206SG1R0MC / MDR1206SG2R2MC Magnetic Shielded Smd Power Inductor |
Material: |
Alloy Powder |
Rated Current: |
0.95 To 27.6A |
Operating Temperature: |
-40+85°C |
Application: |
Copy Machine |
Sample: |
Free Samples |

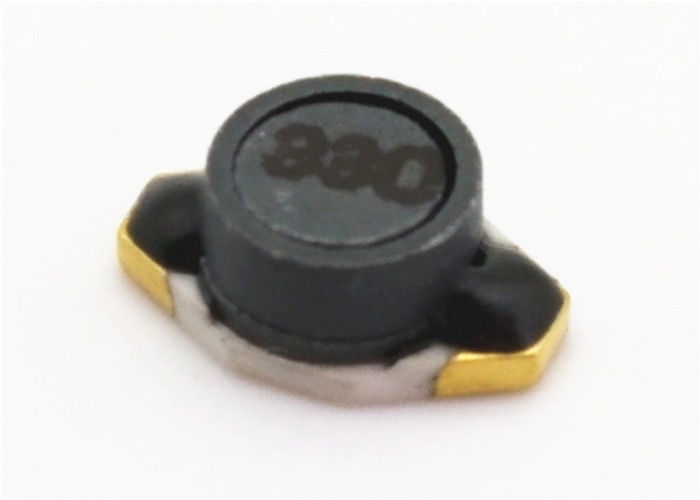

MDR1206SG1R0MC / MDR1206SG2R2MC Magnetic shielded smd power inductor
Application:
1. VCRS, Copy machine , Audio equipment , Game machines
2. TV sets, Microcomputer equipment, printers, Terminals
3. communications control equipment
4.Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system
| Part number |
Inductance (uH) |
Tolerance (±%) |
DCR MAX (Ω) |
SRF TYP (MHz) |
Isat (A) |
Irms (A) |
| MDR1206SG1R0MC | 1.0 | 20 | 0.09 | 80 | 27.6 | 8.6 |
| MDR1206SG2R2MC | 2.2 | 20 | 0.014 | 80 | 18.5 | 7.1 |
| MDR1206SG3R3MC | 3.3 | 20 | 0.018 | 60 | 14.5 | 6.2 |
| MDR1206SG5R6MC | 5.6 | 20 | 0.020 | 40 | 12.5 | 5.3 |
| MDR1206SG8R2MC | 8.2 | 20 | 0.029 | 30 | 10.3 | 4.8 |
| MDR1206SG100MC | 10 | 20 | 0.031 | 30 | 9.4 | 4.3 |
| MDR1206SG150MC | 15 | 20 | 0.036 | 22 | 7.5 | 4.0 |
| MDR1206SG220MC | 22 | 20 | 0.047 | 20 | 6.5 | 3.5 |
| MDR1206SG330MC | 33 | 20 | 0.066 | 15 | 5.2 | 3.0 |
| MDR1206SG470MC | 47 | 20 | 0.086 | 9 | 4.2 | 2.6 |
| MDR1206SG680MC | 68 | 20 | 0.13 | 8 | 3.7 | 2.3 |
| MDR1206SG101MC | 100 | 20 | 0.19 | 7 | 3.0 | 1.8 |
| MDR1206SG151MC | 150 | 20 | 0.25 | 6 | 2.5 | 1.5 |
| MDR1206SG221MC | 220 | 20 | 0.38 | 5 | 2.0 | 1.2 |
| MDR1206SG331MC | 330 | 20 | 0.45 | 4 | 1.7 | 1.0 |
| MDR1206SG471MC | 470 | 20 | 0.85 | 3 | 1.5 | 0.82 |
| MDR1206SG681MC | 680 | 20 | 1.1 | 2.5 | 1.2 | 0.72 |
| MDR1206SG102MC | 1000 | 20 | 1.8 | 2.0 | 0.95 | 0.56 |
