Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MDRH5D28SG1R0N
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MDRH5D28SG1R0N High Current Low DCR Alloyed Powder SMD Inductor |
Material: |
Alloyed Powder |
Feature: |
High Current Low DCR |
Inductor: |
Power SMD Inductor |
Storage Temperature: |
-20℃ To +85℃ |
Working Temperature: |
-20℃ To +85℃ |
Product Name: |
MDRH5D28SG1R0N High Current Low DCR Alloyed Powder SMD Inductor |
Material: |
Alloyed Powder |
Feature: |
High Current Low DCR |
Inductor: |
Power SMD Inductor |
Storage Temperature: |
-20℃ To +85℃ |
Working Temperature: |
-20℃ To +85℃ |

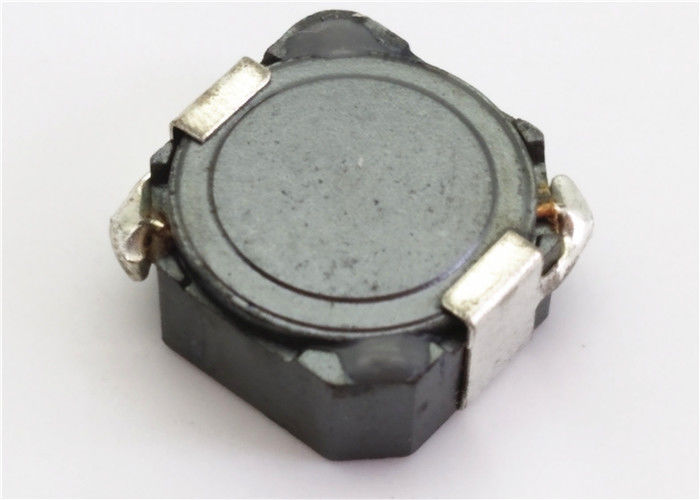

MDRH5D28SG1R0N High Current Low DCR Alloyed powder SMD inductor
Features:
Integrity high power ferrite chip power inductor is a new type of inductor that the coils are embedded in the soft magnetic powder. Due to its closed magnetic circuit structure and the variety of soft magnetic materials, it has many different characteristics from traditional inductors.
| Part number |
Inductance (uH) |
Tolerance (±%) |
DCR MAX (Ω) |
Isat (A) |
Irms (A) |
| MDRH5D28SG1R0N | 1.0 | 20 | 0.0156 | 3.45 | 3.45 |
| MDRH5D28SG1R8N | 1.8 | 20 | 0.0221 | 2.70 | 2.70 |
| MDRH5D28SG2R2N | 2.2 | 20 | 0.0247 | 2.30 | 2.30 |
| MDRH5D28SG2R5N | 2.5 | 20 | 0.0286 | 2.26 | 2.26 |
| MDRH5D28SG3R3N | 3.3 | 20 | 0.0325 | 2.23 | 2.23 |
| MDRH5D28SG4R7N | 4.7 | 20 | 0.0390 | 1.90 | 1.90 |
| MDRH5D28SG5R6N | 5.6 | 20 | 0.0442 | 1.76 | 1.76 |
| MDRH5D28SG6R8N | 6.8 | 20 | 0.0520 | 1.63 | 1.63 |
| MDRH5D28SG8R2N | 8.2 | 20 | 0.0585 | 1.50 | 1.50 |
| MDRH5D28SG100M | 10 | 20 | 0.0780 | 1.30 | 1.30 |
| MDRH5D28SG120M | 12 | 20 | 0.0845 | 1.20 | 1.20 |
| MDRH5D28SG150M | 15 | 20 | 0.1144 | 1.10 | 1.10 |
| MDRH5D28SG180M | 18 | 20 | 0.1196 | 1.00 | 1.00 |
| MDRH5D28SG220M | 22 | 20 | 0.1560 | 0.890 | 0.890 |
| MDRH5D28SG270M | 27 | 20 | 0.1885 | 0.800 | 0.800 |
| MDRH5D28SG330M | 33 | 20 | 0.2067 | 0.730 | 0.730 |
| MDRH5D28SG390M | 39 | 20 | 0.2308 | 0.690 | 0.690 |
| MDRH5D28SG470M | 47 | 20 | 0.260 | 0.610 | 0.610 |
| MDRH5D28SG560M | 56 | 20 | 0.338 | 0.560 | 0.560 |
| MDRH5D28SG680M | 68 | 20 | 0.364 | 0.505 | 0.505 |
| MDRH5D28SG820M | 82 | 20 | 0.416 | 0.460 | 0.460 |
| MDRH5D28SG101M | 100 | 20 | 0.572 | 0.415 | 0.415 |
| MDRH5D28SG121M | 120 | 20 | 0.676 | 0.390 | 0.390 |
| MDRH5D28SG151M | 150 | 20 | 0.790 | 0.300 | 0.300 |
| MDRH5D28SG181M | 180 | 20 | 0.996 | 0.290 | 0.290 |
| MDRH5D28SG221M | 220 | 20 | 1.30 | 0.285 | 0.285 |
