Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MHA302510NSGR33M / MHA302510NSG2R2M
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MHA302510NSGR33M / MHA302510NSG2R2M 0.33~2.2uH Molding SMD Inductor |
Inductor: |
Molding SMD Inductor |
Height: |
1.0mm Max |
Inductance Range: |
0.33uH To 2.2uH |
Mount: |
Surface Mount |
Application: |
DC/DC Converters |
Product Name: |
MHA302510NSGR33M / MHA302510NSG2R2M 0.33~2.2uH Molding SMD Inductor |
Inductor: |
Molding SMD Inductor |
Height: |
1.0mm Max |
Inductance Range: |
0.33uH To 2.2uH |
Mount: |
Surface Mount |
Application: |
DC/DC Converters |

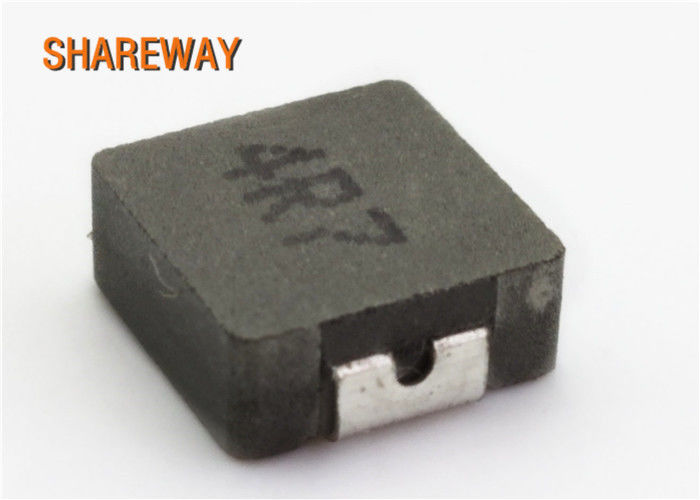

MHA302510NSGR33M / MHA302510NSG2R2M 0.33~2.2uH Molding SMD Inductor
Description:
| Part number | Inductance (uH±20%) | DCR(mΩ)@25℃ TYP | DCR(mΩ)@25℃ Max | Irms(A) | Isat(A) |
| MHA302510NSGR33M | 0.33 | 15 | 18 | 5.0 | 6.0 |
| MHA302510NSGR47M | 0.47 | 20 | 25 | 3.9 | 5.7 |
| MHA302510NSG1R0M | 1.0 | 41 | 49 | 3.5 | 4.3 |
| MHA302510NSG1R5M | 1.5 | 66 | 80 | 2.3 | 3.6 |
| MHA302510NSG2R2M | 2.2 | 100 | 120 | 1.9 | 2.7 |
Note:
Dimensions:
