Product Name: |
LPE4841ER101NU Surface Mount Transformers / Inductors, Gapped And Ungapped |
Type: |
Transformers / Inductors |
Material: |
Bobbin ,copper Wire |
Feature: |
Flat Line |
Current: |
High Current |
Size: |
10.69x12.5x6.3mm |
Product Name: |
LPE4841ER101NU Surface Mount Transformers / Inductors, Gapped And Ungapped |
Type: |
Transformers / Inductors |
Material: |
Bobbin ,copper Wire |
Feature: |
Flat Line |
Current: |
High Current |
Size: |
10.69x12.5x6.3mm |

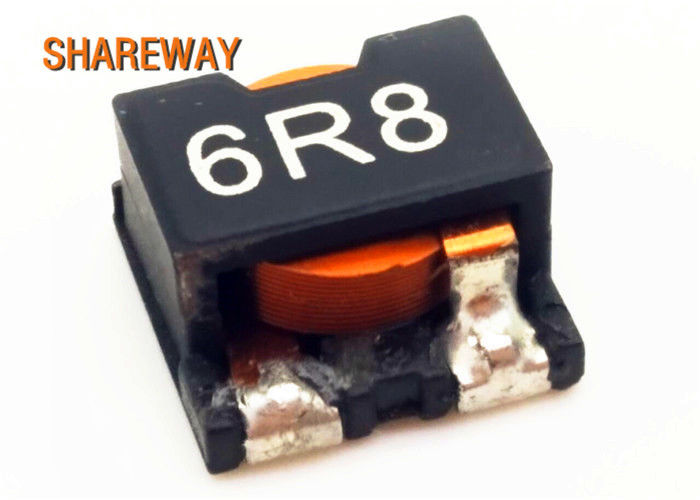

LPE4841ER101NU Surface Mount Transformers / Inductors Gapped and Ungapped
ELECTRICAL SPECIFICATIONS:
| MODEL | IND. (μH) |
IND. TOL. |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE4841ER101NU | 100 | ± 30 % | 0.17 | 0.88 | N/A |
| LPE4841ER151NU | 150 | ± 30 % | 0.21 | 0.79 | N/A |
| LPE4841ER221NU | 220 | ± 30 % | 0.25 | 0.721 | N/A |
| LPE4841ER331NU | 330 | ± 30 % | 0.30 | 0.65 | N/A |
| LPE4841ER471NU | 470 | ± 30 % | 0.36 | 0.60 | N/A |
| LPE4841ER681NU | 680 | ± 30 % | 0.44 | 0.54 | N/A |
| LPE4841ER102NU | 1000 | ± 30 % | 0.53 | 0.49 | N/A |
| LPE4841ER152NU | 1500 | ± 30 % | 0.65 | 0.45 | N/A |
| LPE4841ER222NU | 2200 | ± 30 % | 0.79 | 0.40 | N/A |
| LPE4841ER332NU | 3300 | ± 30 % | 1.55 | 0.29 | N/A |
| LPE4841ER472NU | 4700 | ± 30 % | 1.85 | 0.26 | N/A |
| LPE4841ER682NU | 6800 | ± 30 % | 4.36 | 0.17 | N/A |
ENVIRONMENTAL PERFORMANCE:
| TEST | CONDITIONS |
| Thermal cycling | Withstands -55 °C to +125 °C |
| Operating temperature | -55 °C to +125 °C (1) |
| High humidity | 85 % |
| Soldering heat | Tested to +230 °C |
| Mechanical shock | Per MIL-STD-202, method 213 (100G) |
| Vibration | Per MIL-STD-202, method 204 (20G) |
| Solderability | Per industry standards |
