Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: LPE5047ER151NU
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |

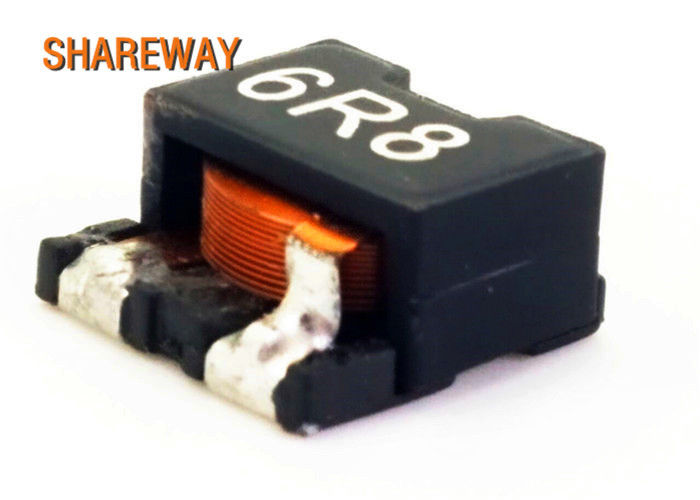

LPE5047ER151NU Flat Wire Inductor For HP 4263A Or HP 4284A Impedance Analyzer |
Application: |
Impedance Analyzer |
Size: |
11.99x13.34x6.30mm |
Type: |
Flat Wire Inductor |
Inductance: |
150-6800uH |
DCR: |
0.2-2.7Ohms |
Product Name: |
LPE5047ER151NU Flat Wire Inductor For HP 4263A Or HP 4284A Impedance Analyzer |
Application: |
Impedance Analyzer |
Size: |
11.99x13.34x6.30mm |
Type: |
Flat Wire Inductor |
Inductance: |
150-6800uH |
DCR: |
0.2-2.7Ohms |
LPE5047ER151NU Flat wire inductor for HP 4263A or HP 4284A impedance analyzer
ELECTRICAL SPECIFICATIONS
(Multiple winds are connected in parallel)
Inductance Range: 10 μH to 68 000 μH, measured at 0.10 V RMS
at 10 kHz without DC current, using an HP 4263A or HP 4284A
impedance analyzer
DC Resistance Range: 0.03 Ω to 24.1 Ω, measured at + 25 °C ± 5 °C
Rated Current Range: 2.29 amps to 0.07 amps
Dielectric Withstanding Voltage: 500 V RMS, 60 Hz, 5 seconds
| MODEL | IND. (μH) |
ND. TOL. |
DCR MAX. (Ohms) |
MAX. RATED* DC CURRENT (Amps) |
SATURATING CURRENT** (Amps) |
| LPE5047ER151NU | 150 | ± 30 % | 0.20 | 0.79 | N/A |
| LPE5047ER221NU | 220 | ± 30 % | 0.24 | 0.72 | N/A |
| LPE5047ER331NU | 330 | ± 30 % | 0.29 | 0.65 | N/A |
| LPE5047ER471NU | 470 | ± 30 % | 0.35 | 0.59 | N/A |
| LPE5047ER681NU | 680 | ± 30 % | 0.42 | 0.54 | N/A |
| LPE5047ER102NU | 1000 | ± 30 % | 0.51 | 0.49 | N/A |
| LPE5047ER152NU | 1500 | ± 30 % | 0.63 | 0.44 | N/A |
| LPE5047ER222NU | 2200 | ± 30 % | 0.76 | 0.40 | N/A |
| LPE5047ER332NU | 3300 | ± 30 % | 1.00 | 0.35 | N/A |
| LPE5047ER472NU | 4700 | ± 30 % | 2.24 | 0.24 | N/A |
| LPE5047ER682NU | 6800 | ± 30 % | 2.70 | 0.21 | N/A |
