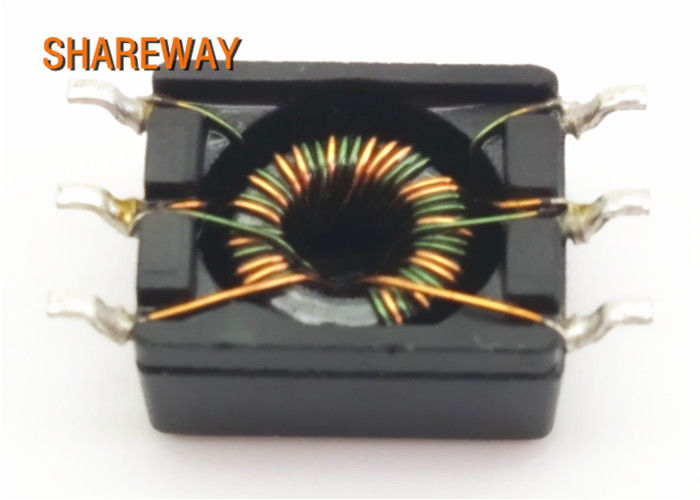

Unshield Common Mode Choke Copper Wires Durable For Gate Driver Power

Unshield Common Mode Choke Copper Wires Durable For Gate Driver Power
Unshield Common Mode Choke Copper Wires Durable For Gate Driver Power

Large Image :  Unshield Common Mode Choke Copper Wires Durable For Gate Driver Power

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Detailed Product Description
Product Name: Common Mode Choke Copper Wires For Gate Driver Power Supplies Usage: Gate Driver Power Supplies
Material: Copper Wires Base: With Base
Shield: Unshield Type: Common Mode Choke
High Light:

common mode toroidal chokes

,

surface mount choke

Common mode Choke Copper Wires for gate driver power supplies


Applications:

  • Notebook
  • Inkjet printer
  • Copying machine
  • ADSL modem
  • Cellular phone
  • Display monitor



ELECTRICAL SPECIFICATIONS @25℃ unless otherwise noted:



PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE 1-3 @20℃ 0.420 ohms ±20%
D.C. RESISTANCE 6-4 @20℃ 4.15 ohms ±20%
INDUCTANCE 1-3 10KHz,10mVAC,Ls 200uH min
LEAKAGE INDUCTANCE 1-3 tie(4+5+6),100KHz,100mVAC,Ls 250nH typ.,500nH max
DIELECTRIC 1-6 3125VAC, 2 second 2500VAC,1 minute
TURNS RATIO (6-4):(1-3) 7:1,±2%
