Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MHA0420NSGR10M
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MHA0420NSGR10M 4.4x4.2x1.8mm SMD Inductor For Server Applications |
Usage: |
Server Applications |
Inductance: |
0.1uH |
Isat: |
30A |
Operating Temperature Rang: |
-55 ℃ To +125 ℃ |
Dimension: |
4.4x4.2x1.8mm |
Product Name: |
MHA0420NSGR10M 4.4x4.2x1.8mm SMD Inductor For Server Applications |
Usage: |
Server Applications |
Inductance: |
0.1uH |
Isat: |
30A |
Operating Temperature Rang: |
-55 ℃ To +125 ℃ |
Dimension: |
4.4x4.2x1.8mm |

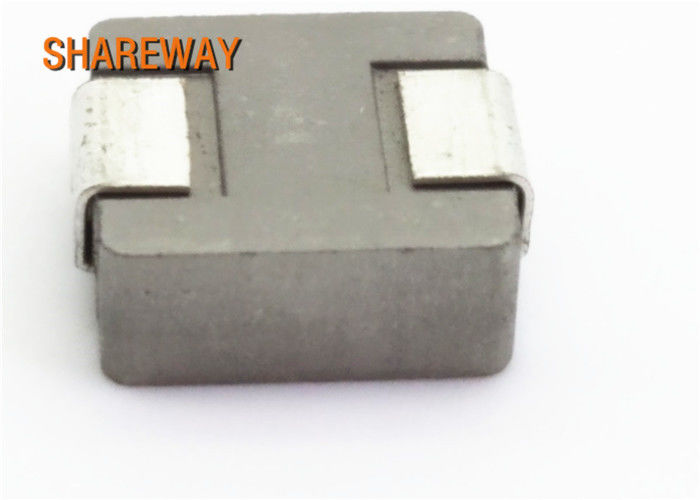

MHA0420NSGR10M 4.4x4.2x1.8mm SMD Inductor For Server Applications
APPLICATIONS:
| Part number |
Inductance (uH±20%) |
DCR(mΩ)@25℃ TYP. |
DCR(mΩ)@25℃ MAX. |
Irms (A) |
Isat (A) |
| MHA0420NSGR10M | 0.10 | 3.50 | 4.00 | 12.00 | 30.00 |
| MHA0420NSGR22M | 0.22 | 6.00 | 6.60 | 9.00 | 12.50 |
| MHA0420NSGR47M | 0.47 | 12.50 | 14.00 | 7.00 | 10.50 |
| MHA0420NSGR56M | 0.56 | 14.00 | 16.00 | 6.50 | 10.00 |
| MHA0420NSGR68M | 0.68 | 16.00 | 18.00 | 6.00 | 9.00 |
| MHA0420NSG1R0M | 1.00 | 24.00 | 27.00 | 4.50 | 7.00 |
| MHA0420NSG1R2M | 1.20 | 24.00 | 27.00 | 4.50 |
7.00 |
| MHA0420NSG1R5M | 1.50 | 38.00 | 46.00 | 4.00 | 6.00 |
| MHA0420NSG2R2M | 2.20 | 52.00 | 58.00 | 3.00 | 5.00 |
| MHA0420NSG3R3M | 3.30 | 74.00 | 87.00 | 2.50 | 4.00 |
| MHA0420NSG4R7M | 4.70 | 92.00 | 105.0 | 2.20 | 3.00 |
| MHA0420NSG6R8M | 6.80 | 162.0 | 178.0 | 2.00 | 2.50 |
| MHA0420NSG8R2M | 8.20 | 188.0 | 207.0 | 1.80 | 2.00 |
| MHA0420NSGR100M | 10.0 | 256.0 | 282.0 | 1.60 | 1.80 |
Dimension:
