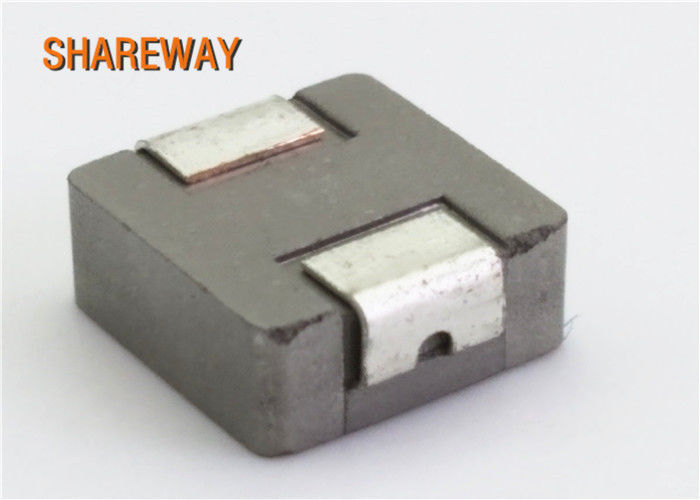

Name: Choke Coil SMD Power Inductor 1.5mm Height MHA0515NSGR33M With RoHS Approval
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: MHA0515NSGR33M
Price: 0.30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: MHA0515NSGR33M

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                wire wound chip inductors, high current power inductors


Product Name:	MHA0515NSGR33M SMD Power Inductor Choke Coil Inductor With RoHS	Height:	1.5mm
Inductance Range:	0.33uH To 15.0uH	Type:	SMD
Inductor:	Choke Coil Inductor	Certification:	RoHS

Product Name:	MHA0515NSGR33M SMD Power Inductor Choke Coil Inductor With RoHS
Height:	1.5mm
Inductance Range:	0.33uH To 15.0uH
Type:	SMD
Inductor:	Choke Coil Inductor
Certification:	RoHS

Choke Coil SMD Power Inductor 1.5mm Height MHA0515NSGR33M With RoHS Approval

MHA0515NSGR33M SMD Power Inductor Choke Coil Inductor With RoHS

Description:

Part number	Inductance (uH±20%)	DCR(mΩ)@25℃ TYP.	DCR(mΩ)@25℃ MAX.	Irms (A)	Isat (A)
MHA0515NSGR33M	0.33	8.00	9.00	10.00	15.00
MHA0515NSG1R0M	1.00	20.00	23.00	6.50	9.00
MHA0515NSG1R2M	1.20	29.30	33.70	5.30	8.00
MHA0515NSG2R2M	2.20	58.00	64.00	3.30	6.00
MHA0515NSG3R3M	3.30	65.00	72.00	3.20	5.00
MHA0515NSG4R7M	4.70	95.00	106.0	3.00	4.00
MHA0515NSG6R8M	6.80	120.0	130.0	2.50	3.20
MHA0515NSG100M	10.0	153.0	170.0	2.00	3.00
MHA0515NSG150M	15.0	310.0	350.0	1.00	2.30

Dimensions:
