Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MHA0718NSGR10M
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MHA0718NSGR10M Shielded SMD Inductor For Automotive Electronics |
Chip: |
Wire Wound Chip |
Height: |
1.8mm Max |
Profile: |
Low Profile |
Size: |
7.3*6.8*1.8mm |
Application: |
Communication Equipment |
Product Name: |
MHA0718NSGR10M Shielded SMD Inductor For Automotive Electronics |
Chip: |
Wire Wound Chip |
Height: |
1.8mm Max |
Profile: |
Low Profile |
Size: |
7.3*6.8*1.8mm |
Application: |
Communication Equipment |

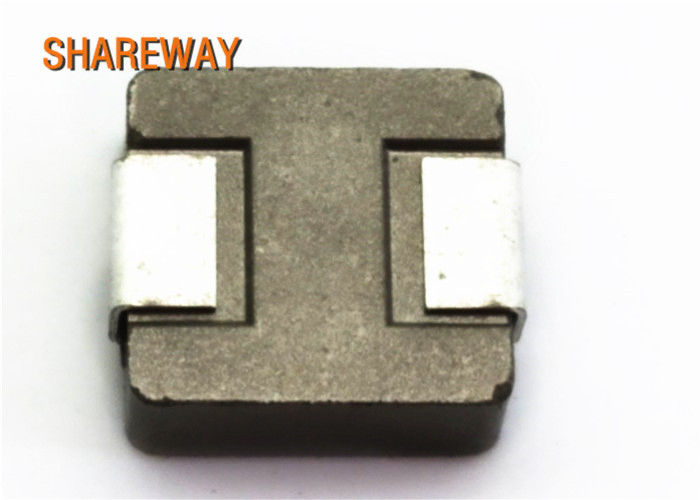

MHA0718NSGR10M Shielded SMD Inductor For Automotive Electronics
Description:
| Part number |
Inductance (uH±20%) |
DCR(mΩ)@25℃ TYP. |
DCR(mΩ)@25℃ MAX. |
Irms (A) |
Isat (A) |
| MHA0718NSGR10M | 0.10 | 6.80 | 2.50 | 18.00 | 45.00 |
| MHA0718NSGR22M | 0.22 | 4.50 | 5.20 | 14.00 | 29.00 |
| MHA0718NSGR33M | 0.33 | 5.20 | 6.80 | 12.00 | 22.00 |
| MHA0718NSGR47M | 0.47 | 7.30 | 8.40 | 11.00 | 18.00 |
| MHA0718NSGR68M | 0.68 | 10.80 | 12.70 | 9.00 | 17.00 |
| MHA0718NSG1R0M | 1.00 | 14.50 | 17.00 | 7.00 | 12.00 |
| MHA0718NSG1R5M | 1.50 | 20.00 | 26.00 | 6.50 | 10.00 |
| MHA0718NSG2R0M | 2.00 | 28.00 | 32.00 | 6.00 | 8.00 |
| MHA0718NSG2R2M | 2.20 | 31.00 | 35.00 | 6.00 | 8.00 |
| MHA0718NSG3R3M | 3.30 | 56.00 | 60.00 | 3.50 | 7.00 |
| MHA0718NSG4R7M | 4.70 | 68.00 | 70.00 | 3.50 | 5.00 |
| MHA0718NSG6R8M | 6.80 | 101.0 | 110.0 | 2.80 | 3.50 |
| MHA0718NSG8R2M | 8.20 | 120.0 | 135.0 | 2.50 | 3.00 |
| MHA0718NSG100M | 10.0 | 140.0 | 155.0 | 2.30 | 2.50 |
| MHA0718NSG150M | 15.0 | 215.0 | 250.0 | 1.80 | 2.20 |
