Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: SC1812-1R0
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
SC1812-1R0 SMD Power Inductor For Excellent Power Density With RoHS |
Effect: |
Excellent Power Density |
RoHS: |
With |
Inductor: |
SMD Power Inductor |
Size: |
4.8x3.9x2.8mm |
Sample: |
Free |
Product Name: |
SC1812-1R0 SMD Power Inductor For Excellent Power Density With RoHS |
Effect: |
Excellent Power Density |
RoHS: |
With |
Inductor: |
SMD Power Inductor |
Size: |
4.8x3.9x2.8mm |
Sample: |
Free |

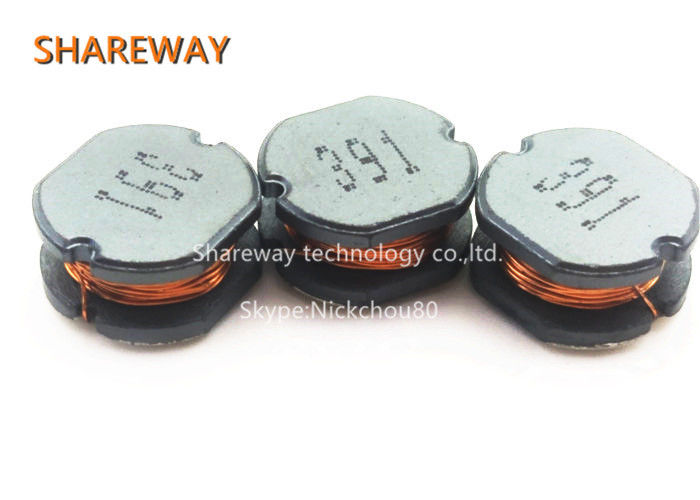

SC1812-1R0 SMD Power Inductor For Excellent Power Density with RoHS
Features:
1. Open frame construction.
2 Low DCR
3 Excellent Power Density
4 Engineered to Provide High Efficiency
Electrical Chareristics:
| Part Number | Inductance (uH) |
Test Frequency |
DC Resistance (Ω MAX) |
Saturation Current (A) |
Temperature Current (A) |
| SC1812-1R0 | 1.0 | 1MHZ | 104m | 1.08 | 1.75 |
| SC1812-1R5 | 1.5 | 1MHZ | 117m | 1.00 | 1.64 |
| SC1812-2R2 | 2.2 | 1MHZ | 143m | 0.90 | 1.55 |
| SC1812-3R3 | 3.3 | 1MHZ | 169m | 0.80 | 1.42 |
| SC1812-4R7 | 4.7 | 1MHZ | 195m | 0.75 | 1.32 |
| SC1812-6R8 | 6.8 | 1MHZ | 260m | 0.72 | 1.23 |
| SC1812-100 | 10 | 1MHZ | 312m | 0.65 | 1.12 |
| SC1812-150 | 15 | 1MHZ | 416m | 0.57 | 0.96 |
| SC1812-220 | 22 | 1MHZ | 780m | 0.42 | 0.70 |
| SC1812-330 | 33 | 1MHZ | 1.30 | 0.31 | 0.50 |
| SC1812-470 | 47 | 1MHZ | 1.43 | 0.28 | 0.45 |
| SC1812-680 | 68 | 1MHZ | 2.21 | 0.22 | 0.38 |
| SC1812-101 | 100 | 1MHZ | 2.86 | 0.19 | 0.34 |
| SC1812-151 | 150 | 1MHZ | 4.55 | 0.13 | 0.28 |
| SC1812-221 | 220 | 1MHZ | 5.20 | 0.11 | 0.24 |
| SC1812-331 | 330 | 1MHZ | 8.84 | 0.10 | 0.19 |
| SC1812-471 | 470 | 1KHZ | 15.0 | 0.09 | 0.13 |
