Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: NRV2010TR68NGF
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
NRV2010TR68NGF Magnetic-resin Inductor Power Shielded Inductor |
Shield: |
Shielded |
Inductor: |
Magnetic-resin Inductor |
Size: |
2x2x1 |
Inductance: |
0.68 UH ± 30 % |
Rated Current (max): |
1.85 A |
Product Name: |
NRV2010TR68NGF Magnetic-resin Inductor Power Shielded Inductor |
Shield: |
Shielded |
Inductor: |
Magnetic-resin Inductor |
Size: |
2x2x1 |
Inductance: |
0.68 UH ± 30 % |
Rated Current (max): |
1.85 A |

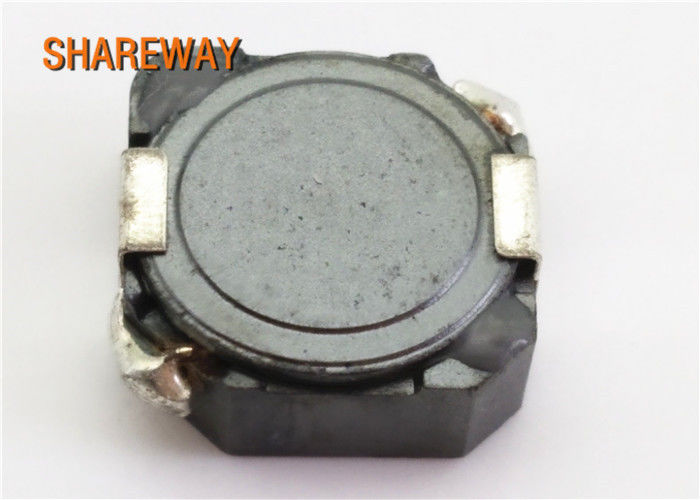

NRV2010TR68NGF Magnetic-resin Inductor Power Shielded Inductor
Products characteristics table:
| Part number | NRV2010TR68NGF |
| Brand | Shareway |
| Inductance | 0.68 uH ± 30 % |
| Case Size (mm) | 2.0x2.0 |
| Rated Current (max) |
1.85 A |
| Saturation Current (max) | 1.85 A (⊿L=30%) |
| Saturation Current (typ) | 2 A (⊿L=30%) |
| Temperature Rise Current (max) | 1.85 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 2.1 A (⊿T=40℃) |
| DC Resistance (max) | 72 mΩ |
| DC Resistance (typ) | 60 mΩ |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |
| Temperature characteristic | ± 20 % (Inductance change) |
| RoHS Compliance (10 subst.) | Yes |
| Halogen Free | Yes |
Dimensions:
