Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: NRV2010T3R3MGF
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
3.3 UH 0.68A Shielded Surface Mount Power Inductor NRV2010T3R3MGF |
Mount: |
Surface Mount |
Inductance: |
3.3uH |
Shielded: |
Shielded |
Inductor: |
Power Inductor |
Feature: |
Durable |
Product Name: |
3.3 UH 0.68A Shielded Surface Mount Power Inductor NRV2010T3R3MGF |
Mount: |
Surface Mount |
Inductance: |
3.3uH |
Shielded: |
Shielded |
Inductor: |
Power Inductor |
Feature: |
Durable |

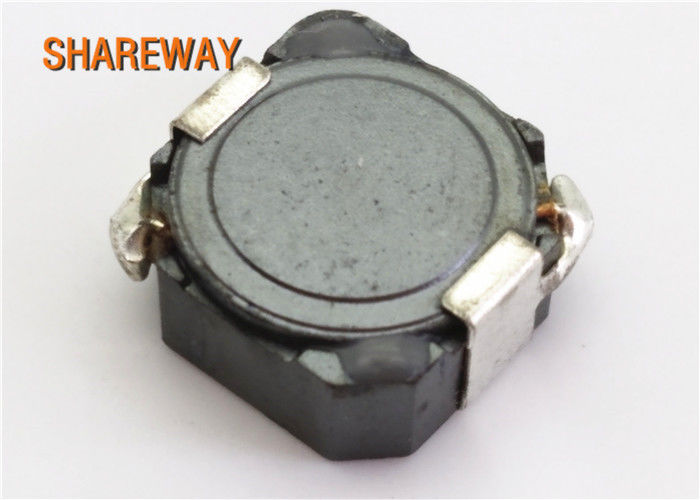

3.3uH 0.68A Shielded Surface Mount Power Inductor NRV2010T3R3MGF
Description:
| Inductance | 3.3 uH ± 20 % |
| Case Size (mm) | 2.0x2.0 |
| Rated Current (max) | 0.88 A |
| Saturation Current (max) | 0.88 A (⊿L=30%) |
| Saturation Current (typ) | 0.95 A (⊿L=30%) |
| Temperature Rise Current (max) | 1 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 1.1 A (⊿T=40℃) |
| DC Resistance (max) | 0.3 Ω |
| DC Resistance (typ) | 0.25 Ω |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |
|
Temperature characteristic (Inductance change) |
± 20 % |
| RoHS Compliance (10 subst.) | Yes |
| REACH Compliance (201 subst.) | Yes |
| Halogen Free | Yes |
| Soldering | Reflow |
Dimensions:
