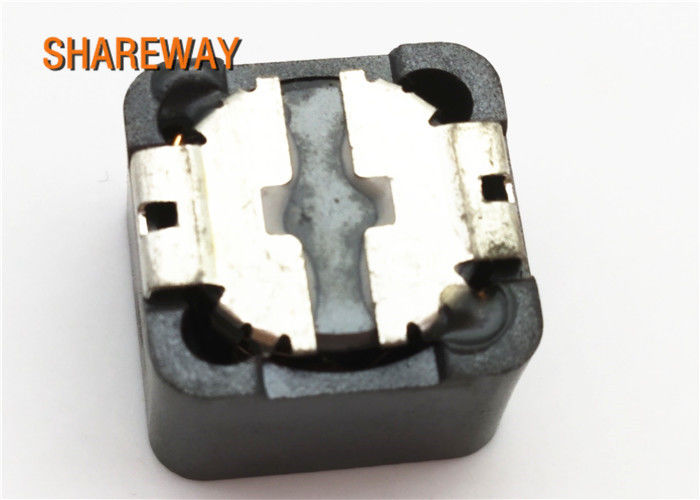

Name: 3.3uH Surface Mount Power Transformer NRS2012T3R3MGJ Low Profile EMI Usage
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: NRS2012T3R3MGJ
Price: 0.30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: NRS2012T3R3MGJ

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                wire wound chip inductors, high current power inductors


Product Name:	Mass Production 3.3 UH Surface Mount Power Transformer NRS2012T3R3MGJ	Usage:	EMI
Inductors:	SMD Fixed Inductors	Mount:	Surface Mount
Feature:	Low Profile	Inductance:	3.3uH

Product Name:	Mass Production 3.3 UH Surface Mount Power Transformer NRS2012T3R3MGJ
Usage:	EMI
Inductors:	SMD Fixed Inductors
Mount:	Surface Mount
Feature:	Low Profile
Inductance:	3.3uH

3.3uH Surface Mount Power Transformer NRS2012T3R3MGJ Low Profile EMI Usage

Mass Production 3.3 uH Surface mount Power Transformer NRS2012T3R3MGJ

Description:

Part number	NRS2012T3R3MGJ
Brand	Shareway
Inductance	3.3 uH ± 20 %
Case Size (mm)	2.0x2.0
Rated Current (max)	1 A
Saturation Current (max)	1 A (⊿L=30%)
Saturation Current (typ)	1.15 A (⊿L=30%)
Temperature Rise Current (max)	1.02 A (⊿T=40℃)
Temperature Rise Current (typ)	1.1 A (⊿T=40℃)
DC Resistance (max)	0.228 Ω
DC Resistance (typ)	0.19 Ω
LQ Measuring Frequency	100 kHz
Operating Temp. Range	-25 to +120 ℃ (Including-self-generated heat)
Temperature characteristic (Inductance change)	± 20 %
RoHS Compliance (10 subst.)	Yes
REACH Compliance (201 subst.)	Yes
Halogen Free	Yes
Soldering	Reflow

Dimensions:

3.3uH Surface Mount Power Transformer NRS2012T3R3MGJ Low Profile EMI Usage 0
