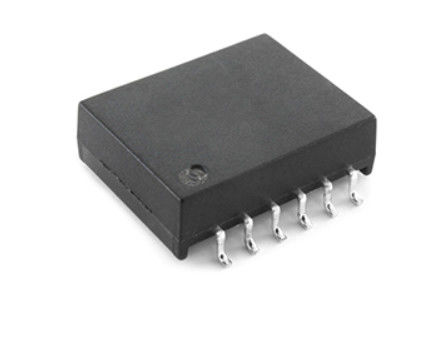

Dual 10 Pin SMT BMS HM2100NL 4.3KV Ethernet Isolation Transformer

Product Details

Place of Origin: China

Brand Name: Shareway

Certification: CE,ISO9001

Model Number: HM2100NL

Payment & Shipping Terms

Minimum Order Quantity: 1000Pcs

Price: Supportive

Delivery Time: 2~3weeks

Payment Terms: T/T, Western Union

Get Best Price
Highlight:

smd power transformer

,

surface mount transformer

Length:
14.93mm
Width:
14.7mm
Height:
3.45mm
Temperature:
-40℃ To +125℃
Isolation Voltage:
4300VDC
Working Voltage:
1000
Length:
14.93mm
Width:
14.7mm
Height:
3.45mm
Temperature:
-40℃ To +125℃
Isolation Voltage:
4300VDC
Working Voltage:
1000
Dual 10 Pin SMT BMS HM2100NL 4.3KV Ethernet Isolation Transformer



ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHER SPECIFIED



PARAMETER SPECIFICATIONS
Design Construction Functional Insulation
Creepage Distance >10mm
Operating Temperature

-40℃ To 125℃

Turns Ratio 1.00±2%
Polarity PER Schematic
DC Resistance Transformer Side CM Choke Side
0.45 OHMS MAX 0.85 OHMS MAX

Inductance (OCL)

AT 100 kHz,100 mV

(-0℃ TO +125℃)

150 uH MIN,450 uH MAX
Leakage Inductance 0.50 uH MAX,@ 100 khz










Dual 10 Pin SMT BMS HM2100NL 4.3KV Ethernet Isolation Transformer 0





Dual 10 Pin SMT BMS HM2100NL 4.3KV Ethernet Isolation Transformer 1
