Product Details
Place of Origin: China
Brand Name: Shareway
Certification: CE,ISO9001

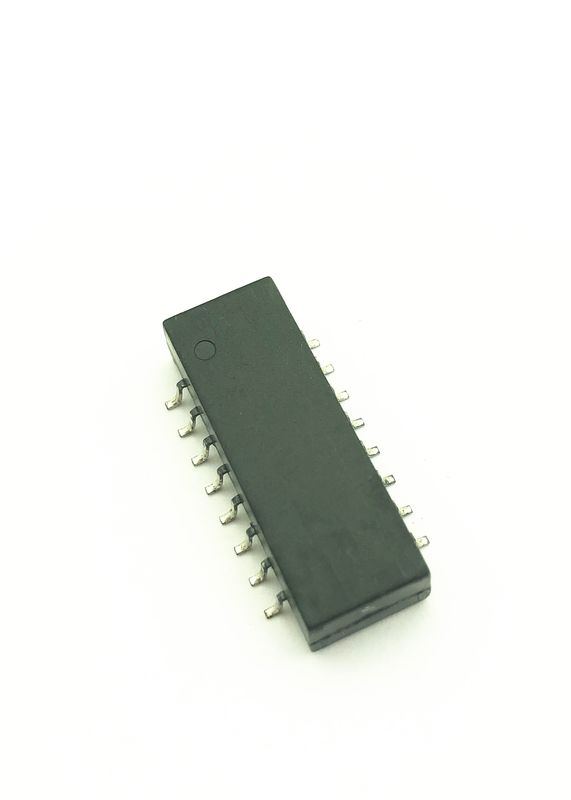

Model Number: HM2112ZNL
Payment & Shipping Terms
Minimum Order Quantity: 1000Pcs
Price: Supportive
Delivery Time: 2~3weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/month
Length: |
15.43mm |
Width: |
14.7mm |
Height: |
3.45mm |
Operating Temperature: |
-40℃ To +125℃ |
Storage Temperature: |
-50℃ To +125℃ |
Creepage Distance: |
＞10mm |
Length: |
15.43mm |
Width: |
14.7mm |
Height: |
3.45mm |
Operating Temperature: |
-40℃ To +125℃ |
Storage Temperature: |
-50℃ To +125℃ |
Creepage Distance: |
＞10mm |
ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHER SPECIFIED
| PARAMETER | SPECIFICATIONS | |
| Design Construction | Functional Insulation | |
| Operating Temperature |
-40℃ To 125℃ |
|
| Turns Ratio | 1.00±2% | |
| Polarity | PER Schematic | |
| DC Resistance | Transformer Side | CM Choke Side |
| 0.45 OHMS MAX | 0.85 OHMS MAX | |
|
Inductance (OCL) AT 100 kHz,100 mV (-40℃ TO +125℃) |
150 uH MIN,450 uH MAX | |
| Leakage Inductance | 0.50 uH MAX,@ 100 khz | |
| Insertion Loss | 0.25 dB MAX @ 4MHz | |
| Crosstalk,Adjacent Channels | -50 dB MIN @ 4 MHz | |
FAQ
Q: Can I have samples for testing quality?
A: Yes,you can huy some samples of any our products for testing quality and market
Q: What is delivery time if we place an order?
A: it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for bigger quantity ,let’s confirm when you place offical order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service , we trun your idea into reality .
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q: Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to make sure high quality .
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods on time and we are able to provide amazing service after selling . What we provide is high level products with high level service . Let's talk more in details to make it happen .
