Product Details
Place of Origin: China
Brand Name: Shareway
Certification: GSC-4807-R
Model Number: GSC-4807-R
Payment & Shipping Terms
Minimum Order Quantity: 200pcs
Price: 0.48US$/PCS~0.95US$/PCS , negotiable
Packaging Details: Tape & Reel ,Tube ,Bulk
Delivery Time: 2~3 weeks or inventory
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 500k per month
Color: |
Black |
Low Profile: |
Yes |
Customerized: |
Supportive |
SMD Or THT: |
Both Available |
Ceitification: |
CE ,ISO9001 |
Color: |
Black |
Low Profile: |
Yes |
Customerized: |
Supportive |
SMD Or THT: |
Both Available |
Ceitification: |
CE ,ISO9001 |
|
Trader Part number |
GSC-4807-R / LP84806ANL |
|
Shareway Part Number |
SC48218NL |
|
Description: |

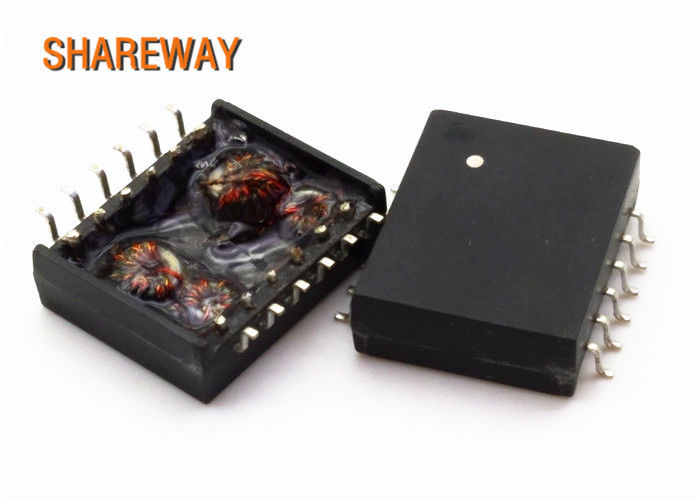

100/1000 BASE-TX Transformer |
|
Product Type: |
Lan Transformers |
|
Packaging: |
Tape&Reel |
| OCL | 350uH Min @ 100KHz ,0.2V ,8mA DC BIAS | |
| LL | 0.5uH Max @100KHz ,0.2V | |
| Cw/w | 25PF TYP @100KHz ,0.2V | |
| DCR | 1.4Ω Max | |
| Turn Ratio | 1CT : 1CT ±5% | |
| Polarity | 2-47 ,5-44 ,8-41 ,11-38,14-35 ,17-32 ,20-29,23-26 In-Phase | |
| Insertion Loss | 0.3~100MHZ | -1.0dB Max |
| Return Loss | 0.3-30 MHz | -16.0dB Min |
| 40 MHz |
-14.4dB Min |
|
| 50 MHz | -13.1dB Min | |
| Cross Talk | 30MHz | -40dB Min |
| 60MHz | -35dB Min |
| 100MHz | -30dB Min | |
| Common Mode Rejection | 30MHz | -40dB Min |
| 60MHz | -35dB Min | |
| 100MHz | -30dB Min | |
| Isolation Hi-pot | 1500Vrms | |
| Operating temperature | 0℃ to +70 ℃ | |
Why us?
Working with worldwide TOP brand customers including Honeywell ,Jabil,NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks .
NorthBound Netwroks is the OEM for this project.
Q: Can I have samples for testing quality?
A: Yes,you can huy some samples of any our products for testing quality and market
Q: What is delivery time if we place an order?
A: it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for bigger quantity ,let’s confirm when you place offical order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service , we trun your idea into reality .
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q: Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to make sure high quality .
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods on time and we are able to provide amazing service after selling . What we provide is high level products with high level service . Let's talk more in details to make it happen .
