Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: UB-M5BR-G14-4S
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tube or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 300K.PCS/Month
Product Name: |

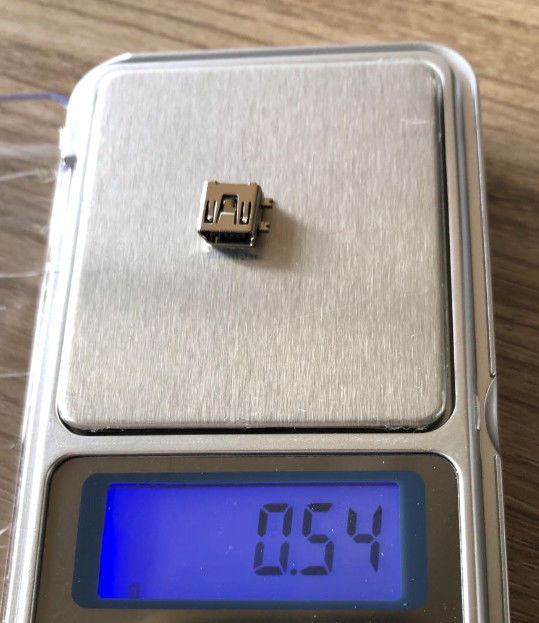

UB-M5BR-G14-4S Mini B USB Connector |
Gender: |
RCP |
Type: |
Mini USB 2.0 Type B |
Application: |
PCB,Audio & Video,networking,Telecom,Signal |
Number Of Terminals: |
5 |
Number Of Ports: |
1 |
Packing: |
Tape&Reel/ Tube |
OEM: |
Supported |
Product Name: |
UB-M5BR-G14-4S Mini B USB Connector |
Gender: |
RCP |
Type: |
Mini USB 2.0 Type B |
Application: |
PCB,Audio & Video,networking,Telecom,Signal |
Number Of Terminals: |
5 |
Number Of Ports: |
1 |
Packing: |
Tape&Reel/ Tube |
OEM: |
Supported |
| Trader PN# | UB-M5BR-G14-4S |
| Shareway PN# | |
| Part Status | Under Producing |
| Type | Mini USB 2.0 Type B |
| Gender | RCP |
| Number of Terminals | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Termination Method | Solder |
| Terminal Pitch(mm) | 0.8 |
| Body Orientation | Right Angle |
| Maximum Current Rating (A) | 1 |
| Maximum Voltage Rating | 30VAC/30VDC |
| Insulation Resistance (MOhm) | 1000 |
| Shell Material | Copper Alloy |
| Shell Plating | Tin Over Nickel |
| Minimum Operating Temperature | -55℃ |
| Maximum Operating Temperature | +85℃ |
| Packaging | Tape&Reel or Tube |
| Product Depth | 8.5mm |
| Product Height | 4.4mm |
| Mounting | Surface Mount |
The small USB socket is found on digital cameras, external hard drives, USB hubs, and other equipment. Mini USB is smaller much than USB Type-A and Type-B, but twice as thick as Micro USB. Mini USB and all other USB connectors are expected to be superseded by USB Type C.
Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
Northbound Networks is the OEM for this project.
Q: Can I have samples for quality testing?
A: Yes, you can buy some samples of any of our products for quality testing.
Q: What is the delivery time if we place an order?
A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for big quantity, let’s confirm when you place official order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service, we turn your idea into reality.
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information about your Logo.
Q: Do your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification are approved to make sure high quality.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to deliver the goods on time and we can provide amazing service after selling. What we provide are high-level products with high-quality service. Let's talk more in detail to make it happen.
