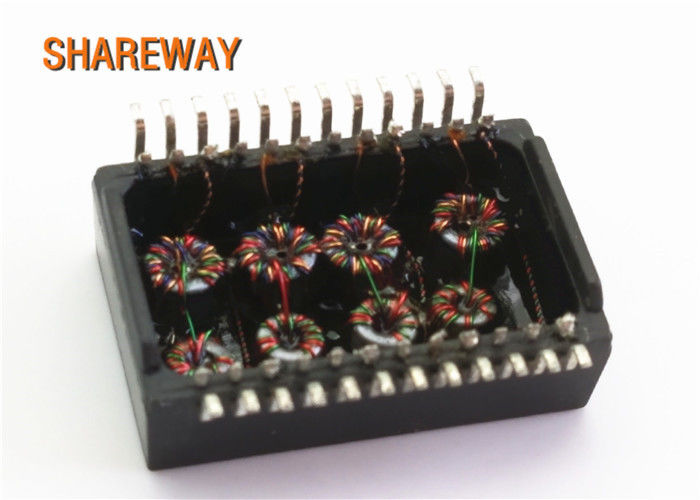

PoE 90W HDBASET Ethernet Lan Transformer 1A TG10G-HP10NZ5LF

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: TG10G-HP10NZ5LF

Certification: RoHS,CE,Reach

Model Number: SCG7006ENL / TG10G-HP10NZ5LF

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Tape&Reel or Tube

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 100k-pcs/month

Get Best Price
Highlight:

HDBASET Ethernet Lan Transformer

,

90W Ethernet Lan Transformer

,

1A Single Port Isolation Module

Product Name:
24 Pins And 8 Cores 10G Ethernet Magnetic Transformers SCG7006ENL / TG10G-HP10NZ5LF
Cores:
8
Dimension:
13.6*16.6*6.25mm
Operating Temperature Range:
0℃ TO +70℃
Storage Temperature Range:
-40℃ TO +85℃
Turn Ratio:
1CT:1CT
PoE Power:
90W
Current Per Pair:
1 A
Usage:
Electronic, Current,Smart Meter, Lighting
Coil Structure:
Toroidal, Other
Product Name:
24 Pins And 8 Cores 10G Ethernet Magnetic Transformers SCG7006ENL / TG10G-HP10NZ5LF
Cores:
8
Dimension:
13.6*16.6*6.25mm
Operating Temperature Range:
0℃ TO +70℃
Storage Temperature Range:
-40℃ TO +85℃
Turn Ratio:
1CT:1CT
PoE Power:
90W
Current Per Pair:
1 A
Usage:
Electronic, Current,Smart Meter, Lighting
Coil Structure:
Toroidal, Other
PoE 90W HDBASET Ethernet Lan Transformer 1A TG10G-HP10NZ5LF

SMD 24 pins and 8 Cores 10G Ethernet Magnetic PoE 90W, 1 A Current Per Pair HDBASET Transformers SCG7006FNL / TG10G-HP10NZ5LF


Product Features:

  • 10GBASE-T Ethernet Transformer/CMR Choke
  • IEEE802.3an/af/at/bt Compliant Options
  • 4PPoE- 4 Pair Power over Ethernet Available
  • UL passed materials
  • 100% Electrical Testing
  • 1500 Vrms Hi-Pot
  • Patented Open Frame Construction
Shareway Part Number Trader Part Number Date Rate Total Power Current Per Pair Operating Temperature Max Height (mm)
SCG7029ANL TG10G-S102NJLF 10G     0~70 ℃ 6.35
SCG7029BNL TG10G-S100NJLF 10G     0~70 ℃ 6.35
SCG7029CNL TG10G-S101NJLF 10G     0~70 ℃ 6.35
SCG7029DNL TG10G-RP02NJLF 10G 30W 350mA 0~70 ℃ 6.35
SCG7006ANL TG10G-S12NZ5LF 10G 30W 350mA 0~70 ℃ 6.48
SCG7006BNL TG10G-E12NZ5LF 10G 30W 350mA 0~85℃ 6.48
SCG7006CNL TG10G-HP6NZ5LF 10G 60W 600mA 0~70 ℃ 6.48
SCG7006DNL TG10G-HPE6NZ5LF 10G 60W 600mA 0~85℃ 6.48
SCG7006FNL TG10G-HP10NZ5LF 10G 90W 1A 0~70 ℃ 6.48
SCG7006GNL TG10G-HPE10NZ5LF 10G 90@ 1A 0~85℃ 6.48






ELECTRICAL SPECFICATIONS@25℃:
1. Turn Ratio(±3%) 1CT:1CT
2. Insertion Loss(dB MAX): -1.2dB(1-500MHz)
3. Return Loss(dB MIN): -18dB(1-40MHz),-17+10log(f/40MHz)dB(40-500MHz)
4. Cross talk(dB TYP): -40dB(1-100MHz),-30dB(100-500MHz)
5. CDMR(dB TYP): -30dB(1-250MHz), -22dB(250-500MHz)
6. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
7. Operating Temperature Range: 0℃ TO +70℃
8. Storage Temperature Range: -40℃ TO +85℃
9. RoHS compliance:YES















Dimensions:

PoE 90W HDBASET Ethernet Lan Transformer 1A TG10G-HP10NZ5LF 0

Circuit:

PoE 90W HDBASET Ethernet Lan Transformer 1A TG10G-HP10NZ5LF 1
