24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA

24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA
24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA

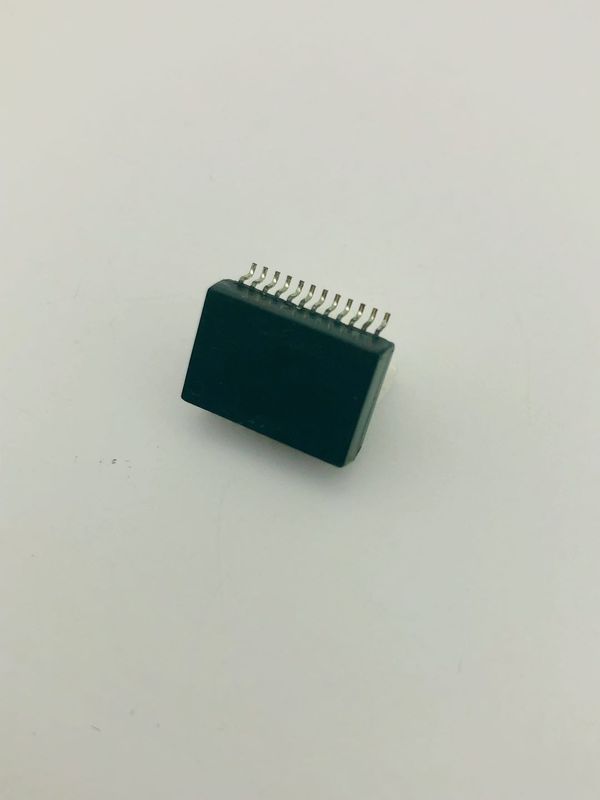

Large Image :  24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,Reach
Model Number: TG111-S112NYLF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: 0.62US$~1.2US$
Packaging Details: Tape&Reel or Tube
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Detailed Product Description
Product Name: 24 Pins And 8 Cores Gigabit Ethernet Magnetic Transformers TG111-S112NYLF Cores: 8
Dimension: 13.6*16.6*6.25mm Operating Temperature Range: -40℃ TO +85℃
Storage Temperature Range: -40℃ TO +85℃ Turn Ratio: 1CT:1CT
PoE Power: 13W Current Per Pair: 350mA
High Light:

24 Pin PoE Gigabit Transformer

,

30W PoE Gigabit Transformer

,

350mA Single Port Magnetic Transformers

SMD Single Port or Dual Port 10/100BASE-TX PoE/PoE+/PoE++ Isolation Modules


Product Features:

  • 24 PIN 1.0mm Lead Pitch SMT Package.
  • GigE Ethernet PoE/PoE+ Transformer/Choke.
  • IEEE802.3ab/af/at Compliant
  • Lead-free/ RoHs compliant/ ''Green Product''.
  • Compatible for Lead-free soldering process.
  • UL passed materials.
  • 100% Electrical Testing.
  • 1500 Vrms Hi-Pot.
  • Patented Open Frame Construction.
  • Extended operating temperature -40~+85 ℃.





Shareway Part Number Trader Part Number Date Rate Total Power Current Per Pair Operating Temperature Max Height (mm)
S24-5001NL TG111-E12NYNLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5002NL TG111-S112NYLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5003NL TG111-S112NYRL Gigabit 30W 350mA -40~+85℃         6.35
S24-5004NL TG111-E112NYLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5005NL TG111-E112NYRL Gigabit 30W 350mA -40~+85℃ 6.35
S24-5006NL TG111-S012NZLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5007NL TG111-S012NZLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5008NL TG111-E012NZLF Gigabit 30W 350mA -40~+85℃ 6.35
S24-5009NL TG111-E012NZRL Gigabit 30W 350mA -40~+85℃ 6.35
S24-5010NL TG111-HP3NZLF Gigabit 30W 720mA -40~+85℃ 6.35
S24-5011NL TG111-HP3NZRL Gigabit 30W 720mA -40~+85℃ 6.35
S24-5012NL TG111-HPE3NZLF Gigabit 30W 720mA -40~+85℃ 6.35
S24-5013NL TG111-HPE3NZRL Gigabit 30W 720mA -40~+85℃ 6.35





ELECTRICAL SPECFICATIONS@25℃:
1. Turn Ratio(±3%) 1CT:1CT
2. Insertion Loss(dB MAX): -1.1dB(1-500MHz)
3. Return Loss(dB MIN): -18dB(1-40MHz),-17+10log(f/40MHz)dB(40-500MHz)
4. Cross talk(dB TYP): -40dB(1-100MHz),-30dB(100-500MHz)
5. CDMR(dB TYP): -30dB(1-250MHz), -22dB(250-500MHz)
6. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
7. Operating Temperature Range: 0℃ TO +70℃
8. Storage Temperature Range: -40℃ TO +85℃
9. RoHS compliance:YES







24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA 0



24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA 1







Dimensions:



Type1:

24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA 2





Type 2:

24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA 3



Schematics:

24 Pin 30W PoE Gigabit Transformer Single Port TG111-S112NYLF 350mA 4
