Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,Reach
Model Number: EPC3117S-1-LF
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: 0.42US$~0.988US$
Packaging Details: Reel/Tray/ Tube
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union, Western Union
Supply Ability: 100k-pcs/month
Product Name: |

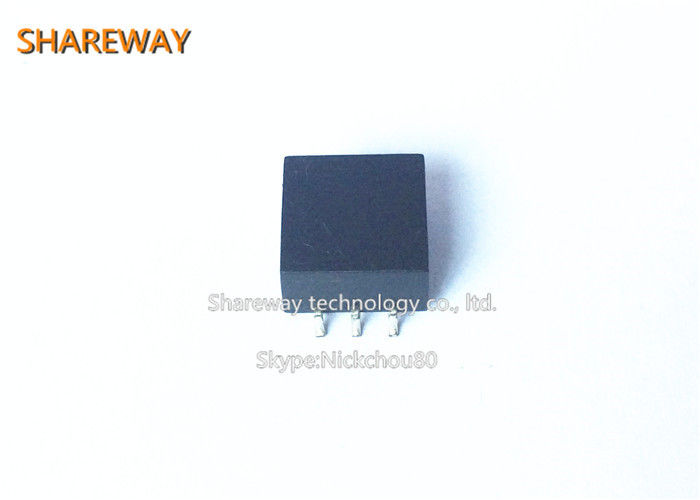

Surface Mount Push-Pull Low Power Transformer |
Category: |
Flyback-PoE Transformers |
Topology: |
Push-Pull |
Weight: |
250~270 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
Controller: |
Maxim |
Chipset: |
MAX845 |
Product Name: |
Surface Mount Push-Pull Low Power Transformer |
Category: |
Flyback-PoE Transformers |
Topology: |
Push-Pull |
Weight: |
250~270 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
Controller: |
Maxim |
Chipset: |
MAX845 |
Push-Pull Low Power Transformer
Product detail
| Shareway Part Number | Trader Part Number | Topology | Geometry | Turns Ratio | Output Power | Primary Inductance/uH | Vin/V | Aux | S1 | Fsw/KHz | Chipset |
| S3117-1NL | EPC3117S-1-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:2:2 | 0 | 150 | 3.3 | 5V | 0 | Maxim MAX845 | |
| S3117-2NL | EPC3117S-2-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:1.3:1.3 | 0 | 375 | 5 | 5V | 0 | Maxim MAX845 | |
| S3117-3NL | EPC3117S-3-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:2.67:2.67 | 0 | 375 | 5 | 10V | 0 | Maxim MAX845 | |
| S3117-4NL | EPC3117S-4-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:3:3 | 0 | 375 | 5 | 12V | 0 | Maxim MAX845 | |
| S3117-5NL | EPC3117S-5-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:1:1 | 0 | 150 | 3.3 | 5V | 0 | Maxim MAX845 | |
| S3117-6NL | EPC3117S-6-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:0.67:0.67 | 0 | 375 | 5 | 5V | 0 | Maxim MAX845 | |
| S3117-7NL | EPC3117S-7-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:1.5:1.5 | 0 | 375 | 5 | 12V | 0 | Maxim MAX845 | |
| S3117-8NL | EPC3117S-8-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1:1:2:2 | 0 | 375 | 5 | 15V | 0 | Maxim MAX845 |
Dimensions:
