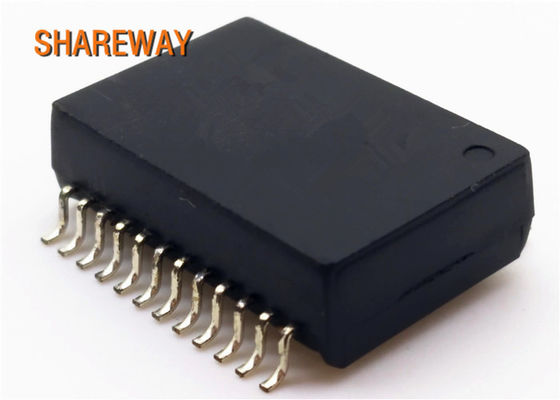

CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A

CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A
CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A

Large Image :  CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: 749020023A
Certification: RoHS,CE,Reach
Model Number: SC5020NL / H5020FNL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tape&Reel or Tube
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 100k-pcs/month
Detailed Product Description
Product Name: 50 Pins And 8 Cores 10G Ethernet Magnetic Transformers SCG7006ENL / TG10G-HP10NZ5LF Cores: 16
Dimension: 13.6*16.6*6.25mm Operating Temperature Range: -40℃ TO +85℃
Storage Temperature Range: -40℃ TO +85℃ Turn Ratio: 1CT:1CT
PoE Power: Optional Current Per Pair: 320mA,720mA,1A Optional
Usage: Electronic, Current,Smart Meter, Lighting Coil Structure: Toroidal, Other
High Light:

Toroidal Coil Ethernet Isolation Transformer

,

CMR Choke Ethernet Isolation Transformer

,

749020022A Pulse Lan Transformer

749020022A is an SMD 50 pins and 16 Cores 1000Base Ethernet Magnetic Transformer, alternative to SC5020NL/H5020FNL


Product Features:

  • 1000BASE-T Ethernet Transformer/CMR Choke
  • IEEE802.3an/af/at/bt Compliant Options
  • 4PPoE- 4 Pair Power over Ethernet Available
  • UL passed materials
  • 100% Electrical Testing
  • 1500 Vrms Hi-Pot
  • Patented Open Frame Construction
Shareway Part Number Trader Part Number Date Rate Total Power Current Per Pair Operating Temperature Max Height (mm)

SC5020NL
749020022A or  H5020FNL 1000BaseT 30W,60W,90W,150W Optional 360mA,720mA,1A Optional -40~+85℃ 8.50




ELECTRICAL SPECFICATIONS@25℃:
1. Turn Ratio(±3%) 1CT:1CT
2. Insertion Loss(dB MAX): -1.2dB(1-500MHz)
3. Return Loss(dB MIN): -18dB(1-40MHz),-17+10log(f/40MHz)dB(40-500MHz)
4. Cross talk(dB TYP): -40dB(1-100MHz),-30dB(100-500MHz)
5. CDMR(dB TYP): -30dB(1-250MHz), -22dB(250-500MHz)
6. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
7. Operating Temperature Range: 0℃ TO +70℃
8. Storage Temperature Range: -40℃ TO +85℃
9. RoHS compliance:YES



Application:

  • Suitable for industrial temperatures from -40℃~+125℃
  • Compatible to Industrial Ethernet systems like EtherCAT of Profinet
  • Suitable for Microchip, Texas Instruments, Broadcom, Linear Technilogy
  • Hubs, Routers, Switches, IP cameras, IoT products, LAN-on mother board





CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A 0

CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A 1





Dimensions:

CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A 2





Circuit:

CMR Choke Toroidal Coil Ethernet Isolation Transformer 1000BaseT 749020022A 3
