4 Channel 100W PoE Ethernet Transformer IEEE 802.3bt 74902201222

24-Pin 4Channel 100W PoE transformer ,1000 BaseT 4PPoE Lan filter, IEEE 802.3bt compliant, -40~+105C

Product Features:

• 24 PIN 1.0mm Lead Pitch SMT Package.
• GigE Ethernet PoE/POE+/PoE++ Transformer/Choke.
• IEEE802.3bt/af/at Compliant
• Lead-free/ RoHs compliant/ ''Green Product''.
• Compatible for Lead-free soldering process.
• UL passed materials.
• 100% Electrical Testing.
• 1500 Vrms Hi-Pot.
• Patented Open Frame Construction.
• Extended operating temperature -40~+85 ℃.

ELECTRICAL SPECFICATIONS@25℃:
1. Turn Ratio(±3%) 1CT:1CT
2. Insertion Loss(dB MAX): -1.1dB(1-500MHz)
3. Return Loss(dB MIN): -18dB(1-40MHz),-17+10log(f/40MHz)dB(40-500MHz)
4. Cross talk(dB TYP): -40dB(1-100MHz),-30dB(100-500MHz)
5. CDMR(dB TYP): -30dB(1-250MHz), -22dB(250-500MHz)
6. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
7. Operating Temperature Range: 0℃ TO +70℃
8. Storage Temperature Range: -40℃ TO +85℃
9. RoHS compliance:YES

Dimensions:

Schematics:

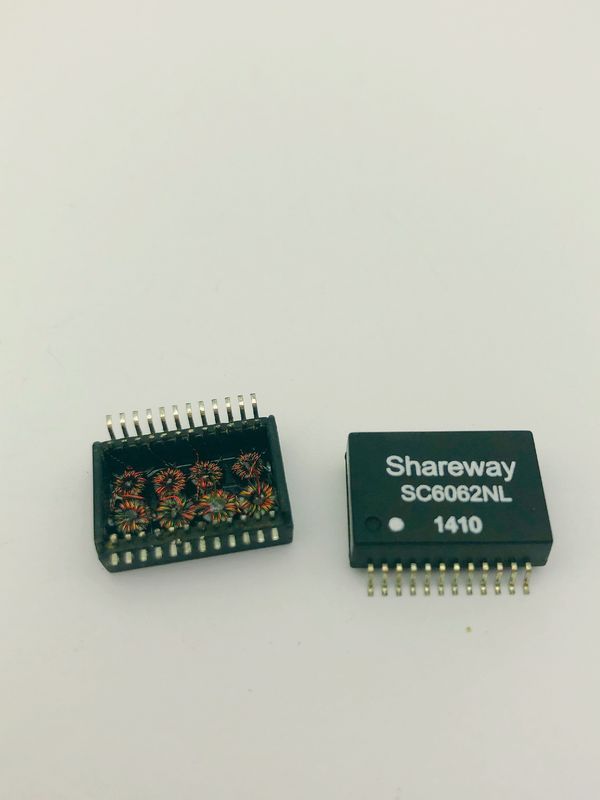

Real product Photos:
