Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: SRN8040-xxxx
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tape&Reel or Bulk
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |

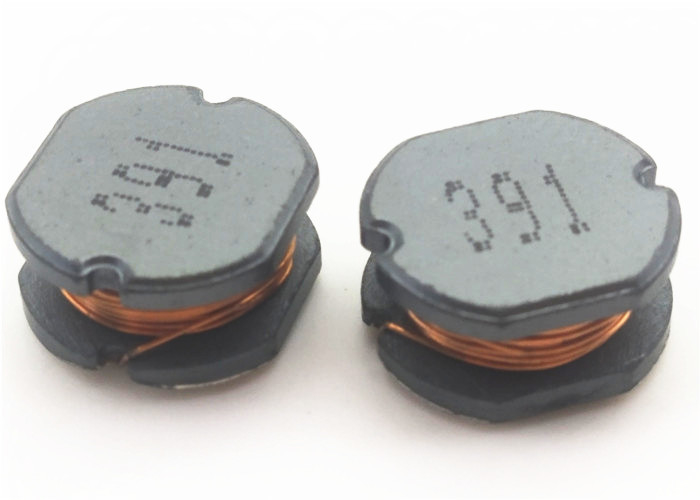

SRN8040TA Series - Semi-shielded Power Inductors Rated Current Up To 12A |
Type: |
Wirewound |
Inductor: |
SMD Power Inductor |
Inductance: |
From 0.5uH To 330uH |
Rated Current: |
Up To 17A |
Dimension: |
8.0x8.0x4.2mm |
Product Name: |
SRN8040TA Series - Semi-shielded Power Inductors Rated Current Up To 12A |
Type: |
Wirewound |
Inductor: |
SMD Power Inductor |
Inductance: |
From 0.5uH To 330uH |
Rated Current: |
Up To 17A |
Dimension: |
8.0x8.0x4.2mm |
Features of the SRN8040TA Series:
Application of the SRN8040TA Series - Semi-shielded Power Inductors rated current up to 12A:
Electrical Characteristics:
| Part Number | Trader Part Number | Inductance (uH) @ 1MHz /1V | Tolerance ± % | Q (Min) @ 1MHz | SRF (MHz) Typ. | DCR(mohm)±20% | Irms(A) Tyo. | Isat(A) Typ. |
| SNR8040-R50Y | SNR8040TA-R50Y | 0.5 | 30 | 20 | 165 | 5.5 | 12 | 17 |
| SNR8040-1R0Y | SNR8040TA-1R0Y | 1.0 | 30 | 15 | 85 | 8.2 | 8.5 | 13.8 |
| SNR8040-1R4Y | SNR8040TA-1R4Y | 1.4 | 30 | 15 | 78 | 10 | 8.2 | 11.8 |
| SNR8040-1R5Y | SNR8040TA-1R5Y | 1.5 | 30 | 15 | 66 | 10 | 8 | 11.5 |
| SNR8040-2R0Y | SNR8040TA-2R0Y | 2.0 |
30 |
15 | 61 | 11 | 7.5 | 10.2 |
| SNR8040-2R2Y | SNR8040TA-2R2Y | 2.2 | 30 | 15 | 57 | 11.5 | 7.4 | 9.8 |
| SNR8040-3R3Y | SNR8040TA-3R3Y | 3.3 | 30 | 15 | 48 | 15 | 6.6 | 8.0 |
| SNR8040-4R7M | SNR8040TA-4R7M | 4.7 | 20 | 15 | 38 | 19.5 | 5.8 | 6.7 |
| SNR8040-5R6M | SNR8040TA-5R6M | 5.6 | 20 | 15 | 33 | 22 | 5.4 | 6.2 |
| SNR8040-6R8M | SRN8040TA-6R8M | 6.8 | 20 | 15 | 29 | 25 | 5.1 | 5.6 |
| SNR8040-100M | SNR8040TA-100M | 10 | 20 | 15 | 25 | 33 | 4.6 | 5.0 |
| SNR8040-150M | SNR8040TA-150M | 15 | 20 | 12 | 20 | 50 | 3.6 | 4.0 |
| SNR8040-220M | SNR8040TA-220M | 22 | 20 | 12 | 18 | 73 | 2.9 | 3.1 |
| SNR8040-330M | SNR8040TA-330M | 33 | 20 | 12 | 15 | 100 | 2.3 | 2.6 |
| SNR8040-470M | SNR8040TA-470M | 47 | 20 | 12 | 12 | 135 | 2.0 | 2.2 |
| SNR8040-560M | SNR8040TA-560M | 56 | 20 | 12 | 10.5 | 160 | 1.75 | 1.9 |
| SNR8040-680M | SNR8040TA-680M | 68 | 20 | 12 | 9.5 | 205 | 1.65 | 1.75 |
| SNR8040-820M | SNR8040TA-820M | 82 | 20 | 12 | 8.5 | 230 | 1.40 | 1.60 |
| SNR8040-101M | SNR8040TA-101M | 100 | 20 | 10 | 8 | 300 | 1.20 | 1.45 |
| SNR8040-121M | SNR8040TA-121M | 120 | 20 | 10 | 7.5 | 350 | 1.10 | 1.30 |
| SNR8040-151M | SNR8040TA-151M | 150 | 20 | 10 | 7 | 410 | 0.98 | 1.20 |
| SNR8040-181M | SNR8040TA-181M | 180 | 20 | 10 | 6.5 | 490 | 0.91 | 1.04 |
| SNR8040-221M | SNR8040TA-221M | 220 | 20 | 10 | 5.5 | 610 | 0.85 | 0.99 |
| SNR8040-331M | SNR8040TA-331M | 330 | 20 | 10 | 5 | 850 | 0.70 | 0.75 |
Dimension:
Electrical Schematic:
