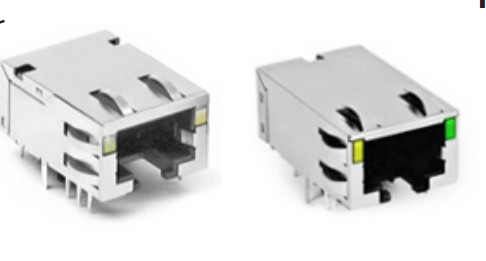

1X1 Tab-Down 10GBase-T RJ45 Designed To Support Transceivers J4T-1108HL

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: J4T-1108HL = SRJT81108HNL

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 100k-pcs/month

Get Best Price
Highlight:

ISO9001 10GBase-T RJ45

,

10Gigabit RJ45 Modular Jack

,

28.57mm RJ45 Modular Jack

Product Name:
1X1 Tab-Down 10GBase-T RJ45 Designed To Support 10GBASSE-T Transceivers J4T-1108HL
Application:
Network
Length:
28.57mm
Feature:
Long Type
Port:
Single
Speed:
10Gigabit
Product Name:
1X1 Tab-Down 10GBase-T RJ45 Designed To Support 10GBASSE-T Transceivers J4T-1108HL
Application:
Network
Length:
28.57mm
Feature:
Long Type
Port:
Single
Speed:
10Gigabit
1X1 Tab-Down 10GBase-T RJ45 Designed To Support Transceivers J4T-1108HL

1X1 Tab-Down 10GBase-T RJ45 Designed to support 10GBASSE-T Transceivers JT4-1108HL


Features and benefites of  JT4-1108HL = SRJT81108NL:

  • Compliant with IEEE 802.3 standard
  • Qualified with top 10Gig PHY Manufatures
  • RoHS peak wave solder temperature rating 260℃
  • Low profile package for PCI Express
  • Fine-tune magnetics to specific PHY vendors





Part Number Trader Part Number Channel Option LED(L/R) Insertion Loss (dB or better) Insertion Loss (dB or better) Return Loss (dB or better) Return Loss (dB or better) Common to Differential Mode Rejecction (dB or better) Common to Differential Mode Rejecction (dB or better) Cross Talk (dB or better) Cross Talk (dB or better) Hi-Pot ( Vrms Min)
         100KHz 1-400 MHz  1-40 MHz  40-500 MHz 1-250 MHz  250-500MHz 1-100 MHz 100-500MHz
SRJT81108NL JT4-1108HL 5 G-Y/G 3.0  -2.0dB MAX (-1.4 dB typ) -22 -22 + 18.27* LOG(f/100) -30 -22 -30 -20 1500
SRJT81109NL JT4-1109HL 5 G-A/G-A 3.0 -2.0dB MAX (-1.4 dB typ) -22 -22 + 18.27* LOG(f/100) -30 -22 -30 -20 1500
SRJT81120NL JT4-1120HL 4 G-Y/G 3.0 -2.0dB MAX (-1.4 dB typ) -22 -17 + 18.27* LOG(f/100) -30 -22 -30 -20 1500





Description:

Part number J4T-1108HL = SRJT81108HNL
Connector Type RJ45
Part Status Active
Number of Ports 1
Number of Rows 1
Applications 10 Gigabit Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.663" (16.85mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction User Selectable
Contact Material Copper Alloy
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.0µin
Shield Material Brass
Dielectric Material Thermoplastic
