Home > products > Power Over Ethernet Transformer > H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications

H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: H93TX1

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 300K.PCS/Month

Get Best Price
Highlight:

H93TX1 Reinforced Insulation Transformer

,

CE Reinforced Insulation Transformer

,

500kHZ Power Over Ethernet Transformer

Product Name:
H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications Application
Size:
17.75mm*12.7mm*16.36
Type:
EE/EI/EP/EF Transformer
Core Grade:
PC40/N87
Working Frequency:
20kHZ-500kHZ
Usage:
High Frequency
Product Name:
H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications Application
Size:
17.75mm*12.7mm*16.36
Type:
EE/EI/EP/EF Transformer
Core Grade:
PC40/N87
Working Frequency:
20kHZ-500kHZ
Usage:
High Frequency
H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications

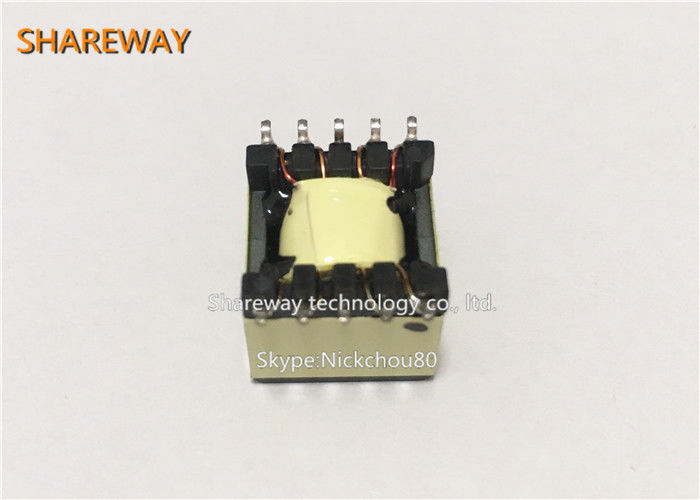

H93TX1 Reinforced Insulation transformer for IT900  PIM908 Power Line Communications application

H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications 0



H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications 1

Electrical specification of the H93TX1 Reinforced Insulation transformer for IT900 PIM908 Power Line Communications application

Parameter Pins under test Test conditions STD Tolerance
Breakdown Voltage 1:8 Vac 3600Vrms 2s
Inductance  8-5 10kHz 0.1V >= 0.6mH
Leakage Inductance 8-5 with (1-3,2-4 shorted) 1MHz 0.1V <= 1.0uH
Interwinding Capacitance 1-8 with (2-3 shorted) 10kHz 0.1V <= 40pF
DCR 1-4 with (2-3 shorted)  @ 25℃  0.32 ohm Max
DCR 8-5  @ 25℃  0.40 ohm Max
