Product Name: |
7448680180 Common Mode Choke For High Frequency DC/DC Converter |
Usage: |
For High Frequency DC/DC Converter |
Mount: |
Through-hole |
Product Type:: |
Common Mode Power Line Choke |
Operating Temperature Range: |
-40 Up To +115 °C |
Inductance: |
150 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
7448680180 Common Mode Choke For High Frequency DC/DC Converter |
Usage: |
For High Frequency DC/DC Converter |
Mount: |
Through-hole |
Product Type:: |
Common Mode Power Line Choke |
Operating Temperature Range: |
-40 Up To +115 °C |
Inductance: |
150 UH |
Package: |
Cut Tape /MouseReel/ Reel |
7448680180 Common Mode Choke for High frequency DC/DC converter
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol | |
| Number of windings | N | 2 | |||
| Inductance | L | 10 kHz/ 100 mV | 150 | µH | ±40% |
| Leakage Inductance | L S | 10 kHz/ 100 mV | 5.6 | µH | typ. |
| Rated Current | I R | @ 60 °C | 20 | A | max. |
| DC Resistance | RDC | @ 20 °C | 1.9 | mΩ | max. |
| Rated Voltage | VR | 50 Hz | 250 | V (AC | max. |
| Insulation Test Voltage | Vt | 50 Hz/ 5 mA/ 2 sec | 1500 | V (AC |
Shape and Dimensions:

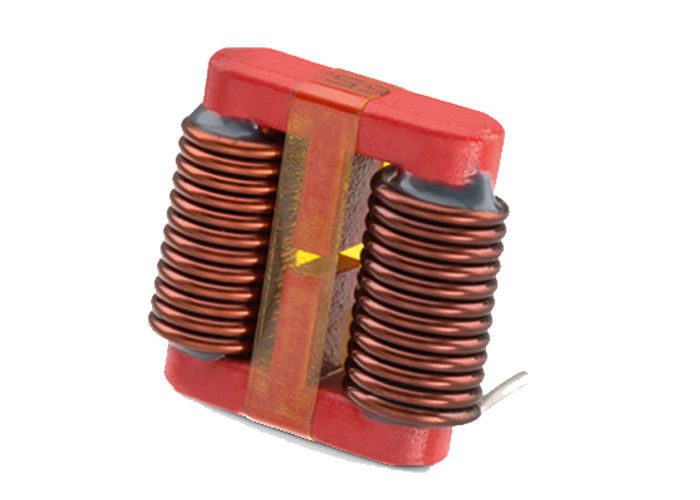

Product picture:
7448680180 Common Mode Choke for High frequency DC/DC converter
