Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750316094
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
750316094 GDT Gate Drive Transformers For Smart Grid Power Supplies |
Usage: |
For Smart Grid Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
GDT Gate Drive Transformers |
Operating Temperature Range: |
–40 °C To +125 °C |
Inductance: |
261 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
750316094 GDT Gate Drive Transformers For Smart Grid Power Supplies |
Usage: |
For Smart Grid Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
GDT Gate Drive Transformers |
Operating Temperature Range: |
–40 °C To +125 °C |
Inductance: |
261 UH |
Package: |
Cut Tape /MouseReel/ Reel |
750316094 GDT Gate Drive Transformers for Smart Grid power supplies
Characteristics
Applications
ELECTRICAL SPECIFICATTONS 回 25°C unless otherwise noted:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C, RESISTANCE 5-8 |
tie(6+7), @20DC |
0.148 ohms ±15% |
|
D.C, RESISTANCE 1-3 |
@20°C |
0.585 ohms 土 15% |
|
D.C, RESISTANCE 2-4 |
@20°C |
0.665 ohms ±15% |
|
INDUCTANCE 5-8 |
tie(6+7), 10kHz, lOOmVAC, Ls |
261.00uH min. |
|
LEAKAGE INDUCTANCE 5-8 |
tie(6+7, 1+2 + 3+4), 100kHz, WOmVAC, Ls |
150nH typ., 400nH max. |
|
DISTRIBUTED CAPACITANCE 5-8 |
tie(6+7), lOOmVAC, Cs |
20.0pF typ. |
|
INTERWINDING CAPACITANCE 1-8 |
tie(6+7), 100kHz, lOmVAC, Cs |
45.0pF typ., 90.0pF max. |
|
INTERWINDING CAPACITANCE 2-8 |
tie(6+7), 100kHz, lOmVAC, Cs |
45.0pF typ., 90.0pF max. |
|
DIELECTRIC 1-8 |
tie(6+7, 2+3), 1500VAC, 1 second |
1500VAC, 1 minute |
|
TURNS RATIO |
(1-3):(2-4) |
1:1, 土 1% |
|
TURNS RATIO |
(1—3):(5—8), tie(6+7) |
2.5:1, ±1% |
Shape and Dimensions:

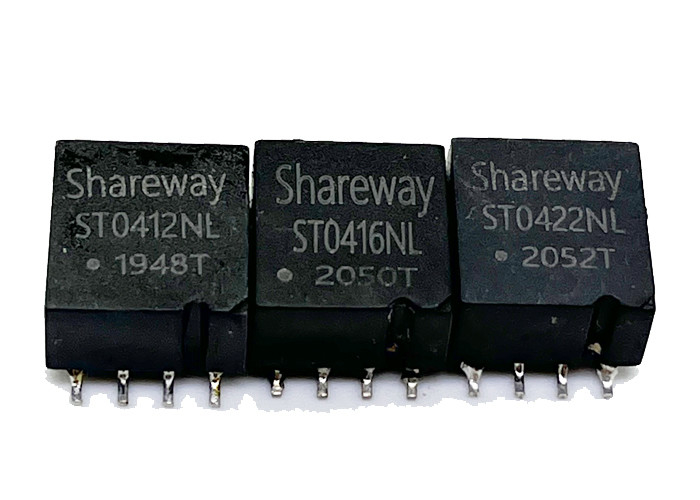

Product picture:
750316094 GDT Gate Drive Transformers for Smart Grid power supplies
