Product Name: |

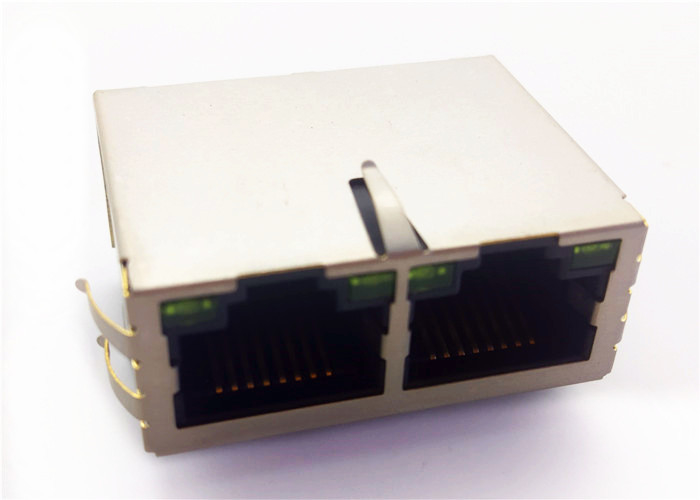

7499021125 RJ45 Connector With Integrated Transformer For Switches |
Usage: |
For Switches |
Mount: |
Through-hole |
Product Type:: |
RJ45 LAN Transformer |
Operating Temperature Range: |
–40 °C Up To +85 °C |
Ports: |
1*2 |
Inductance: |
350 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
7499021125 RJ45 Connector With Integrated Transformer For Switches |
Usage: |
For Switches |
Mount: |
Through-hole |
Product Type:: |
RJ45 LAN Transformer |
Operating Temperature Range: |
–40 °C Up To +85 °C |
Ports: |
1*2 |
Inductance: |
350 UH |
Package: |
Cut Tape /MouseReel/ Reel |
7499021125 RJ45 Connector with integrated transformer For Switches
Characteristics
Applications
Application Notes
Electrical Properties:
| Eigenschaften / properties | Testbedingungen / test conditions | Wert / value | Einheit / unit | tol. | |
| Induktivität / Inductance | 100kHz / 100mV @ 8mA DC-Bias | OCL | 350 | µH | min |
| Übersetzungsverhältnis 1 : 1 Tx / Turns ratio | 100kHz / 100mV | TR | 1 : 1 | Tx | ±2% |
| 1 : 1 | Rx | ||||
| Insertion Loss | 1-100MHz | IL | -1,0 | dB | max |
| Return Loss | 1-10MHz @ 100Ω | RL | -20 | dB | min. |
| 10-30MHz @ 100Ω | -16 | ||||
| 30-60MHz @ 100Ω | -12 | ||||
| 60-80MHz @ 100Ω | -10 | ||||
| Common Mode Rejection | 1-50MHz | CMR | -30 | dB | min. |
| 50-150MHz | -20 | ||||
| Crosstalk | 1-100MHz | CT | -30 | dB | min. |
