Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: SC12165NL
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
S558-5500-25-F |
Shareway P/n: |
SC12165NL |
Speed: |
10/100M Base-T |
Pin: |
16 PINS |
Port: |
Single |
Soldering Type: |
SMD |
Hi-pot: |
1500v |
PoE: |
Yes |
Sample: |
Free Sample Supported |
Cross P/n: |
S558-5500-25-F |
Shareway P/n: |
SC12165NL |
Speed: |
10/100M Base-T |
Pin: |
16 PINS |
Port: |
Single |
Soldering Type: |
SMD |
Hi-pot: |
1500v |
PoE: |
Yes |
Sample: |
Free Sample Supported |

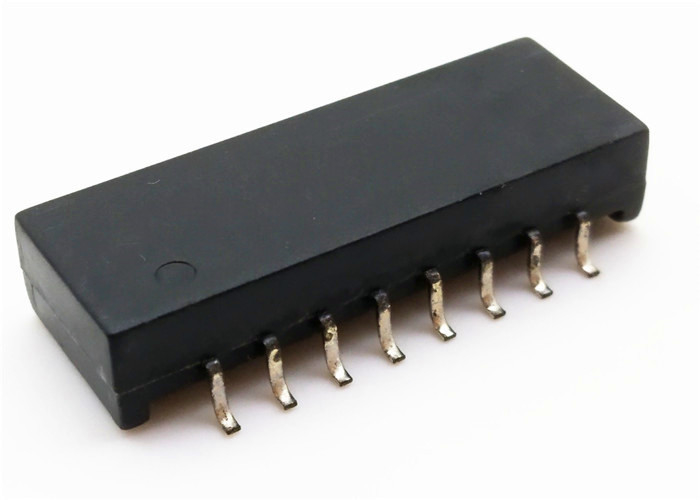

10/100M Bast-T VoiP Interface Module PoE Lan transformer S558-5500-25-F cross to SC12165NL
| Electrical Characteristic @25℃ | |
| Turns ratio |
PIN 1-2-3: 16-15-14 1CT:1CT PIN 6-7-8: 11-10-9 1CT:1CT |
| OCL | 350 uH MIN |
| Leakage inductance |
Tx PIN 1-3 Short 16-14, Rx PIN 6-8 Short 11-9 |
| DCR | Pin(1-3); (6-8) 1.1Ohm Max |
| Insertion Loss |
1 MHz - 30MHz 18dB MIN 30MHz - 60MHz 18-20 Log(f/30MHz) 60MHz - 80MHz 12dB MIN |
| Choke to differenqitial | 100 kHz -100MHz 35dB MIN |
| CrossTalk | 100 kHz- 100MHz 35dB MIN |
| HIPOT | 1500V |
| RoHs | Compliant |
Schematic Diagram:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
For further information, please contact Karen (sales04@shareway-tech.com) freely!
