Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOS6020-222MLC
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
MOS6020-222MLC Low-loss Ferrite Drum Core SMD Power Inductor |
Usage: |
For Electronics |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
2.2 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
MOS6020-222MLC Low-loss Ferrite Drum Core SMD Power Inductor |
Usage: |
For Electronics |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
2.2 UH |
Package: |
Cut Tape /MouseReel/ Reel |
MOS6020-222MLC Low-loss ferrite drum core SMD Power Inductor
Characteristics
Electrical Properties:
Part number | Inductance ±20% (µH) | DCR max (Ohms) | SRF typ (MHz) | Isat (A) | Irms (A) | |||
10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | ||||
MOS6020-222MLC | 2.2 | 0.035 | 110 | 2.86 | 3.26 | 3.56 | 3.0 | 4.1 |
MOS6020-332MLC | 3.3 | 0.047 | 85 | 1.90 | 2.28 | 2.46 | 2.6 | 3.6 |
MOS6020-472MLC | 4.7 | 0.050 | 60 | 1.46 | 1.82 | 1.94 | 2.3 | 3.1 |
MOS6020-682MLC | 6.8 | 0.078 | 55 | 1.32 | 1.56 | 1.72 | 1.9 | 2.7 |
MOS6020-822MLC | 8.2 | 0.085 | 45 | 0.94 | 1.18 | 1.30 | 1.7 | 2.3 |
MOS6020-103MLC | 10 | 0.092 | 36 | 0.79 | 0.95 | 1.06 | 1.6 | 2.2 |
MOS6020-153MLC | 15 | 0.130 | 30 | 0.83 | 0.95 | 1.03 | 1.3 | 1.8 |
MOS6020-223MLC | 22 | 0.182 | 22 | 0.79 | 0.92 | 0.97 | 1.0 | 1.4 |
MOS6020-333MLC | 33 | 0.290 | 20 | 0.57 | 0.67 | 0.74 | 0.80 | 1.1 |
MOS6020-473MLC | 47 | 0.420 | 16 | 0.45 | 0.56 | 0.62 | 0.50 | 0.7 |
MOS6020-683MLC | 68 | 0.520 | 15 | 0.37 | 0.45 | 0.51 | 0.45 | 0.63 |
MOS6020-104MLC | 100 | 0.800 | 13 | 0.35 | 0.40 | 0.44 | 0.40 | 0.56 |
MOS6020-154MLC | 150 | 1.28 | 10 | 0.26 | 0.30 | 0.33 | 0.35 | 0.49 |
MOS6020-224MLC | 220 | 2.00 | 8 | 0.22 | 0.26 | 0.28 | 0.30 | 0.42 |
MOS6020-334MLC | 330 | 2.84 | 7 | 0.18 | 0.22 | 0.24 | 0.25 | 0.35 |
MOS6020-474MLC | 470 | 4.40 | 5 | 0.15 | 0.17 | 0.19 | 0.22 | 0.29 |
Shape and Dimensions:

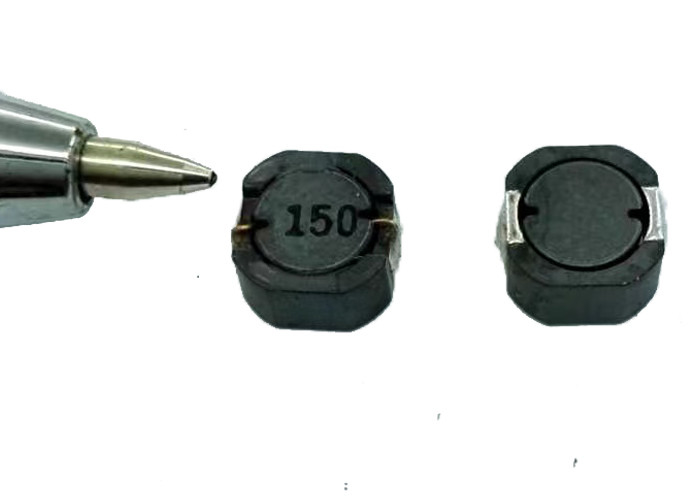

Product picture:
MOS6020-222MLC Low-loss ferrite drum core SMD Power Inductor
