Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MSS6122-472MLC
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
MSS6122-472MLC Shielded SMD SMT Power Inductor For DC DC Driver |
Usage: |
For Electronics |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
4.7 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
MSS6122-472MLC Shielded SMD SMT Power Inductor For DC DC Driver |
Usage: |
For Electronics |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
4.7 UH |
Package: |
Cut Tape /MouseReel/ Reel |
MSS6122-472MLC Shielded SMD SMT Power Inductor For DC DC Driver
Characteristics
Electrical Properties:
Part number | Inductance ±20% (µH) | DCR max (Ohms) | SRF typ (MHz) | Isat (A) | Irms (A) | |||
10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | ||||
MSS6122-472MLC | 4.7 | 0.065 | 65.0 | 1.44 | 1.66 | 1.82 | 1.60 | 2.30 |
MSS6122-562MLC | 5.6 | 0.083 | 60.0 | 1.22 | 1.46 | 1.60 | 1.50 | 2.10 |
MSS6122-682MLC | 6.8 | 0.100 | 48.0 | 1.18 | 1.36 | 1.50 | 1.40 | 2.00 |
MSS6122-822MLC | 8.2 | 0.120 | 44.0 | 1.12 | 1.24 | 1.36 | 1.30 | 1.80 |
MSS6122-103MLC | 10 | 0.150 | 42.0 | 0.98 | 1.10 | 1.20 | 1.20 | 1.70 |
MSS6122-123MLC | 12 | 0.176 | 40.0 | 0.97 | 1.06 | 1.14 | 1.13 | 1.60 |
MSS6122-153MLC | 15 | 0.210 | 38.0 | 0.85 | 0.97 | 1.03 | 1.3 | 1.50 |
MSS6122-183MLC | 18 | 0.280 | 35.0 | 0.78 | 0.89 | 1.04 | 1.06 | 1.40 |
MSS6122-223MLC | 22 | 0.310 | 32.0 | 0.64 | 0.75 | 0.82 | 0.92 | 1.30 |
MSS6122-273MLC | 27 | 0.350 | 26.0 | 0.62 | 0.71 | 0.77 | 0.85 | 1.20 |
MSS6122-333MLC | 33 | 0.460 | 22.0 | 0.60 | 0.69 | 0.74 | 0.77 | 1.10 |
MSS6122-393MLC | 39 | 0.540 | 19.0 | 0.50 | 0.59 | 0.64 | 0.70 | 1.00 |
MSS6122-473MLC | 47 | 0.680 | 18.0 | 0.47 | 0.55 | 0.60 | 0.63 | 0.90 |
MSS6122-563MLC | 56 | 0.740 | 17.0 | 0.43 | 0.50 | 0.54 | 0.56 | 0.80 |
MSS6122-683MLC | 68 | 1.000 | 16.0 | 0.40 | 0.46 | 0.50 | 0.49 | 0.70 |
MSS6122-823MLC | 82 | 1.200 | 15.0 | 0.37 | 0.43 | 0.46 | 0.42 | 0.60 |
MOS6020-104MLC | 100 | 1.370 | 12.5 | 0.32 | 0.37 | 0.44 | 0.35 | 0.50 |
Shape and Dimensions:

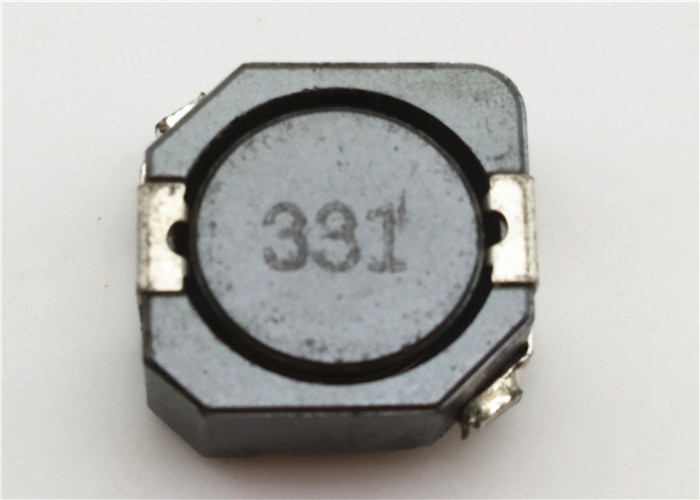

Product picture:
MSS6122-472MLC Shielded SMD SMT Power Inductor For DC DC Driver
