Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750316856
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
750316856 THT FC Common Mode Power Line Choke For Mains Filter |
Usage: |
For Mains Filter |
Product Type:: |
FC Common Mode Power Line Choke |
Operating Temperature Range: |
-40°C To 125°C |
Termination Type: |
Surface Mount |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
750316856 THT FC Common Mode Power Line Choke For Mains Filter |
Usage: |
For Mains Filter |
Product Type:: |
FC Common Mode Power Line Choke |
Operating Temperature Range: |
-40°C To 125°C |
Termination Type: |
Surface Mount |
Package: |
Cut Tape /MouseReel/ Reel |
750316856 THT FC Common Mode Power Line Choke for Mains filter
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Number of windings | N | 2 | |||
| Inductance | L | 10 kHz/ 100 mV | 0.82 | mH | min. |
| Inductance | L | 10 kHz/ 100 mV | 1.1 | mH | typ |
| Leakage Inductance | L S | 100 kHz/ 100 mV | 16.2 | µH | typ |
| Rated Current | I R | @ 70 °C/ ΔT < 55 K | 2.65 | A | max. |
| DC Resistance | RDC | @ 20 °C | 0.08 | Ω | max. |
| Rated Voltage | VR | 50 Hz | 250 | V (AC | max. |
| Insulation Test Voltage | VT | 50 Hz/ 5 mA/ 2 sec. | 2000 | V (AC |
750316856 THT FC Common Mode Power Line Choke for Mains filter
Shape and Dimensions:

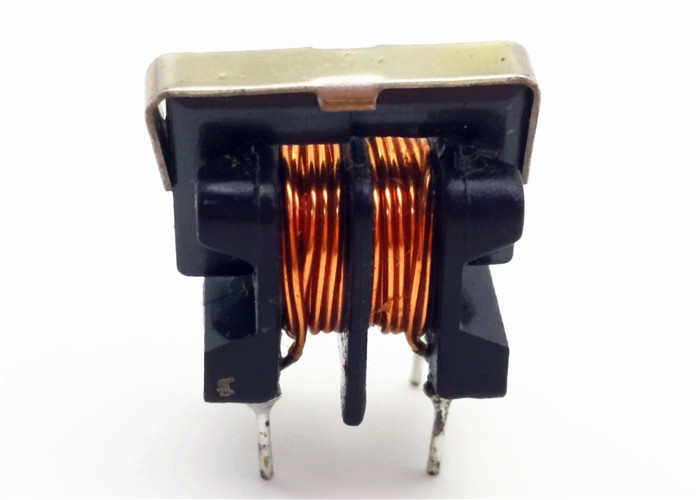

Product picture:
750316856 THT FC Common Mode Power Line Choke for Mains filter
