Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: 7490140122B
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
7490140122B |
Pin: |
12 PINS |
Type: |
SMD Soldering |
Hi-pot: |
4500V |
Package: |
Tape & Reel, Tube |
Speed: |
10/100/1000M Base-T |
Shipping: |
DHL, UPS, Fedex, TNT |
Certificate: |
UL, Reach, RoHs |
Sample: |
Free Sample Supported |
Cross P/n: |
7490140122B |
Pin: |
12 PINS |
Type: |
SMD Soldering |
Hi-pot: |
4500V |
Package: |
Tape & Reel, Tube |
Speed: |
10/100/1000M Base-T |
Shipping: |
DHL, UPS, Fedex, TNT |
Certificate: |
UL, Reach, RoHs |
Sample: |
Free Sample Supported |
Shareway High Voltage Lan transformer with magnetic SMD 12 PIN cross part 7490140122B
Features:
1. Inductance: 100kHz/ 100mA @ 8mA DC Bias
2. OCL: 350 uH Min
3. Turns ratio:100kHz/ 100mA 1TX : 1RX
4. Insertion Loss: 1-100MHz
5. Return Loss:
1-30MHz: -10dB min
30-60MHz: -7dB min
60-80MHz: -5dB min
80-100MHz: -4dB min
6. Common mode rejection ratio:
1-30MHz: -35dB min
30-60MHz: -30dB min
60-100MHz: -28dB min
7. Crosstalk:
1-60MHz: -42dB min
60-100MHz: -40dB min

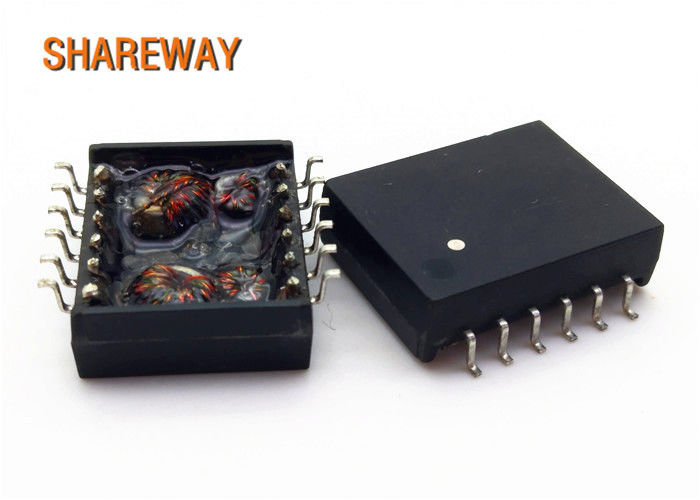

Product photo:
Schematic diagram:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
Please contact sales04@shareway-tech.com freely for any further information.
