Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: 750340848
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
750340848 |
Pin: |
4 PINS |
Type: |
SMD Soldering |
Hi-pot: |
5kV |
Package: |
Tape & Reel, Tube |
Speed: |
10/100/1000M Base-T |
Shipping: |
DHL, UPS, Fedex, TNT |
Certificate: |
UL, Reach, RoHs |
Sample: |
Free Sample Supported |
Cross P/n: |
750340848 |
Pin: |
4 PINS |
Type: |
SMD Soldering |
Hi-pot: |
5kV |
Package: |
Tape & Reel, Tube |
Speed: |
10/100/1000M Base-T |
Shipping: |
DHL, UPS, Fedex, TNT |
Certificate: |
UL, Reach, RoHs |
Sample: |
Free Sample Supported |
Sample 750340848 Available High Voltage Lan transformer with magnetic designed for 5kV surge test
Electrical Specifications:
| Parameter | Test Conditions | Value |
| D.C. resistance 1-2 | @20℃ | 0.3 ohms max |
| D.C. resistance 3-4 | @20℃ | 0.17 ohms max |
| Inductance 1-2 | 10kHz,100mVAC, Ls | 62uH min |
| Dielectric 1-4 | 3750VAC, 1 second | 3000VAC, 1minute |
| Turns ratio | (4-3) : (1:2) | 1:1, ±1% |

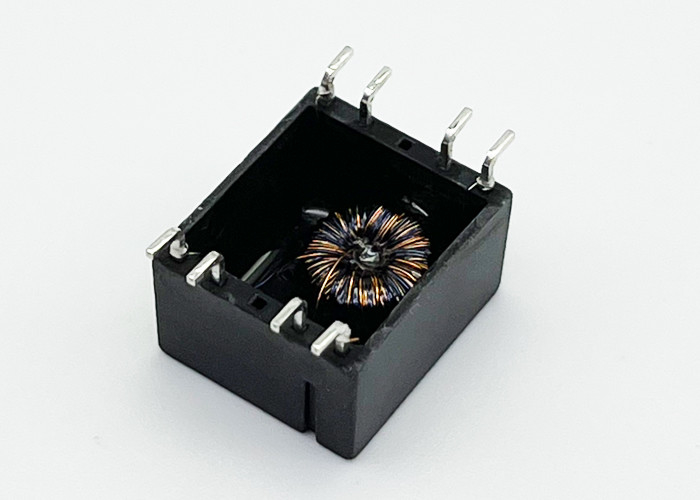

Product photo:
Schematic diagram:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
Please contact sales04@shareway-tech.com freely for any further information.
