Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: 2170668-1
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.10 to USD$0.85
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
2170668-1 |
Latch: |
Tab Up |
Led: |
Without Led |
Type: |
Through Hole |
Product: |
Connectors |
Sample: |
Free Sample Supported |
Cross P/n: |
2170668-1 |
Latch: |
Tab Up |
Led: |
Without Led |
Type: |
Through Hole |
Product: |
Connectors |
Sample: |
Free Sample Supported |

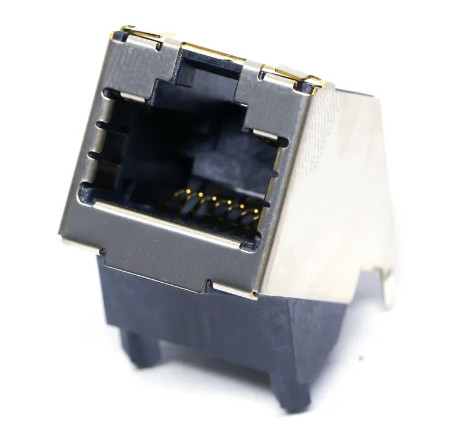

Shareway Modular Connectors / Ethernet Connectors 1x1 8P Angle Entry Jack T/H Shld RJ45 2170668-1
| Product: | Connectors |
| Type: | Modular |
| Gender: | Jack (Female) |
| USOC Codes: | RJ45 |
| Configuration: | 1x1 |
| Number of Positions / Contacts per Port: | 8P8C |
| Shielding: | Shielded |
| Performance Category: | Cat 6 |
| Mounting Style: | Through Hole |
| Mounting Angle: | 45 Deg Angle |
| Termination Style: | Solder |
| Current Rating: | 1.5 A |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Color: | Black |
| Application: | 1G/10G Base-T |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Tab Direction: | Tab Up |
| Number of Positions: | 8 Position |
Mechanical Dimensions:
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
For further information, please contact Karen (sales03@shareway-tech.com) freely!
