Product Name: |
750µH Gate Drive Pulse Transformer 1:1 Surface Mount 4+4 SEP7302 Cross To 760301302 |
Usage: |
For Gate Drive Applcation |
Mount: |
SMT |
Product Type:: |
SMD Gate Drive Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
750 µH |
Turns Ratio: |
1:1 |
Package: |
Tube/Tape&Reel |
Product Name: |
750µH Gate Drive Pulse Transformer 1:1 Surface Mount 4+4 SEP7302 Cross To 760301302 |
Usage: |
For Gate Drive Applcation |
Mount: |
SMT |
Product Type:: |
SMD Gate Drive Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
750 µH |
Turns Ratio: |
1:1 |
Package: |
Tube/Tape&Reel |
Characteristics of the 1:1 Surface Mount 4+4 SEP7302 cross to 760301302:
Applications of of the 1:1 Surface Mount 4+4 SEP7302 cross to 760301302:
Electrical Specification of the 1:1 Surface Mount 4+4 SEP7302 cross to 760301302:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 10 kHz/ 5 mA | 750 | µH | Min |
| Rated Voltage | Vr | 80 | VAC | Typ. | |
| Turns Ration | n | N1:N2 | 1:1 | ||
| DC Resistance1 | RDC1 | N1 @ 20 °C | 1100 | mΩ | Max |
| DC Resistance2 | RDC2 | N2 @ 20 °C | 1300 | mΩ | Max |
| Isoatlion Voltage | V | N1 to N2 | 2500 | VAC | typ. |
| Voltage-Time | 102 | μVs | Typ. |
Shape and Dimensions of of the 1:1 Surface Mount 4+4 SEP7302 cross to 760301302:

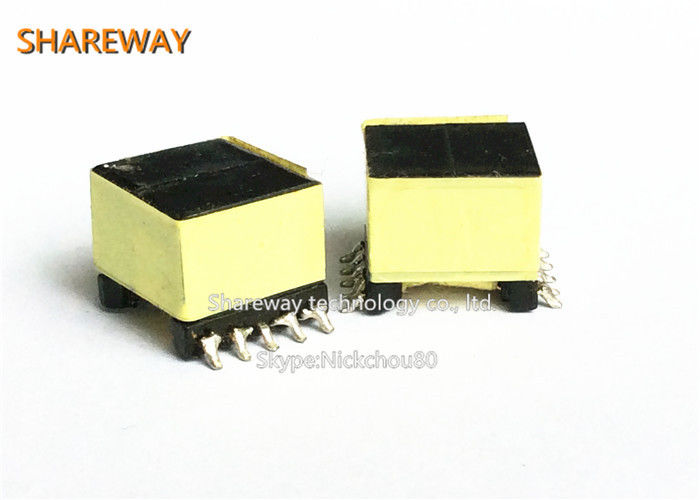

Product picture of of the 1:1 Surface Mount 4+4 SEP7302 cross to 760301302:
