Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 74488540120
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Low Profile EHPI Energy Harvesting Coupled Inductor 74488540120 |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
13 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
Low Profile EHPI Energy Harvesting Coupled Inductor 74488540120 |
Usage: |
For Isolated DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
13 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Low profile EHPI Energy Harvesting Coupled Inductor 74488540120
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance 1 | L 1 | 100 kHz/ 250 mV | 13 | µH | ±20% |
| Inductance 2 | L 2 | 100 kHz/ 250 mV | 33000 | µH | ±20% |
| Rated Current 1 | I R 1 | ΔT = 40 K | 1.7 | A | max. |
| Saturation Current 1 | I SAT 1 | |ΔL/L| < 10 % | 1 | A | typ. |
| DC Resistance 1 | RDC1 | 0.09 | Ω | typ. | |
| DC Resistance 2 | RDC2 | 135 | Ω | typ. | |
| DC Resistance 1 | RDC1 | 0.1 | Ω | max. | |
| DC Resistance 2 | RDC2 | 155 | Ω | max. | |
| Turns Ratio | n | 1 : 50 | |||
| Rated Voltage | VR | 80 | V |
Shape and Dimensions:

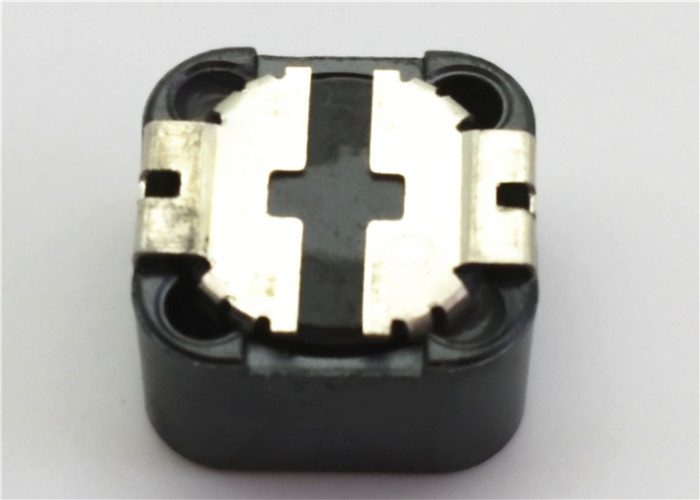

Product picture:
Low profile EHPI Energy Harvesting Coupled Inductor 74488540120
