Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: JT4-1108HL
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$1.85 - USD$2.50
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross Part: |
JT4-1108HL |
Speed: |
10G |
Type: |
Low Profile |
Tab: |
Down |
Hipot: |
1500V |
Sample: |
Free Sample Supported |
Express: |
DHL, Fedex, UPS |
Cross Part: |
JT4-1108HL |
Speed: |
10G |
Type: |
Low Profile |
Tab: |
Down |
Hipot: |
1500V |
Sample: |
Free Sample Supported |
Express: |
DHL, Fedex, UPS |
Shareway 1x1 Tab Down Single Low Profile 10G RJ45 Ethernet Connector JT4-1108HL
Product features:
1. Compliant with IEEE 802.3 standard
2. Qualified with top 10Gig PHY Manufacturers
3. RoHS peak wave solder temperature rating 260°C
4. Low profile package for PCI Express
5. Fine-tune magnetics to specific PHY vendors
Electrical Specifications @ 25℃
1. Insertion Loss:
100KHz: 3.20dB
1-400MHz: -2.0dB Max
2. Return Loss:
1-40MHz: -22dB
40-500MHz:-22 + 18.27Log(f/100)
3. Common to Differential Mode Rejection:
1-250MHz: -30dB
250-500MHz: -22dB
4. Cross Talk:
1-100MHz: -30dB
100-500MHz: -20dB

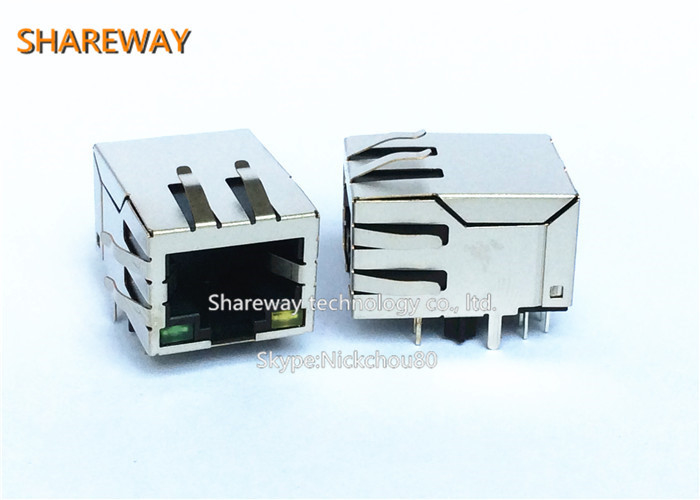

Product Photos:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
Please contact sales04@shareway-tech.com freely for any further information.
