NiZn Common Mode Power Line Choke for Power electronics 7448421016

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 7448421016

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Supportive

Packaging Details: 500 parts per full reel

Delivery Time: Stock or 3-4 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:
Product Name:
NiZn Common Mode Power Line Choke For Power Electronics 7448421016
Usage:
For Power Electronics
Mount:
Through-hole
Product Type::
Common Mode Choke
Operating Temperature Range:
–40 ºC To +125 ºC
Termination Type:
Through-hole
Inductance:
16 µH
Package:
Cut Tape /MouseReel/ Reel
Product Name:
NiZn Common Mode Power Line Choke For Power Electronics 7448421016
Usage:
For Power Electronics
Mount:
Through-hole
Product Type::
Common Mode Choke
Operating Temperature Range:
–40 ºC To +125 ºC
Termination Type:
Through-hole
Inductance:
16 µH
Package:
Cut Tape /MouseReel/ Reel
NiZn Common Mode Power Line Choke for Power electronics 7448421016

NiZn Common Mode Power Line Choke for Power electronics 7448421016


Characteristics

  1. Core material: Nickel-Zinc Ferrite
  2. High suppression rates of asymmetrical interferences at high and middle frequencies
  3. High interference stability against RF interference and burst signals
  4. Compact design
  5. Noise suppression up to 300 MHz
  6. Operating temperature: –40 ºC to +125 ºC



Applications

  1. Power electronics
  2. Power line in- and output filter
  3. Optimized for burst signals





Electrical Properties:

Properties   Test conditions Value Unit Tol.
Number of windings N   2
Inductance L 100 kHz/ 0.1 mA 16 µH ±30%
Rated Current I R @ 70 °C 10 A max.
DC Resistance RDC @ 20 °C 3 max.
Rated Voltage VR 50 Hz 250 V (AC) max.
Insulation Test Voltage VT 50 Hz/ 5 mA/ 2 sec 1500 V (AC)





744842932 CMB NiZn Common Mode Power Line Choke For Power electronics


Shape and Dimensions:

NiZn Common Mode Power Line Choke for Power electronics 7448421016 0

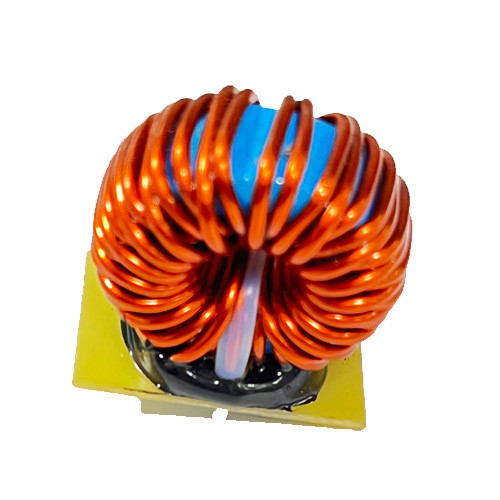

Product picture:
