Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: XEL3520
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Tape/Reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Shareway Ultra-Low Loss Shielded Power Inductors XEL3520 |
Product Type: |
SMD Power Inductor |
Core Material: |
Composite |
Mounted: |
Surface Mounted |
Inductance: |
From 70nH To 1.2μH |
DCR: |
From 2.45mΩ To 35mΩ |
SRF: |
From 471MHz To 70MHz |
Operating Temperature: |
–40°C To +125°C With (40°C Rise) Irms Current |
Operating Voltage: |
0-80V |
Package: |
Tape/Reel |
Product Name: |
Shareway Ultra-Low Loss Shielded Power Inductors XEL3520 |
Product Type: |
SMD Power Inductor |
Core Material: |
Composite |
Mounted: |
Surface Mounted |
Inductance: |
From 70nH To 1.2μH |
DCR: |
From 2.45mΩ To 35mΩ |
SRF: |
From 471MHz To 70MHz |
Operating Temperature: |
–40°C To +125°C With (40°C Rise) Irms Current |
Operating Voltage: |
0-80V |
Package: |
Tape/Reel |
Shareway Ultra-Low Loss Magnetically Shielded Power Inductors XEL3520
Features
Low inductance values for high-frequency applications.
Very low AC losses at high frequency and very low DCR.
Soft saturation to withstand high current spikes.
Magnetically shielded to minimize EMI.
Composite construction minimizes audible buzzing.
No thermal aging – perfect for high-temperature applications.
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature.
Electrical Specification
|
Inductance ±20% Tolerance |
DCR (Typ) |
DCR (Max) |
SRF (Typ) |
Isat (10% drop) |
Isat (20% drop) |
Isat (30% drop) |
Irms (20°C rise) |
Irms (40°C rise) |
| 70 nH | 2.5 mΩ | 2.9 mΩ | 471 MHz | 9.7 A | 13.0 A | 18.5 A | 19.8 A | 27.2 A |
| 130 nH |
3.5 mΩ |
4.1 mΩ | 294 MHz | 7.2 A | 9.8 A | 13.8 A | 18.9 A | 25.4 A |
| 200 nH | 4.9 mΩ | 5.7 mΩ | 227 MHz | 5.7 A | 8.6 A | 11.8 A | 14.8 A | 19.9 A |
| 330 nH | 8.0 mΩ | 9.2 mΩ | 158 MHz | 3.9 A | 6.2 A | 8.7 A | 10.3 A | 13.7 A |
| 470 nH | 9.4 mΩ | 10.9 mΩ | 135 MHz | 3.7 A | 5.7 A | 8.0 A | 9.2 A | 12.1 A |
| 560 nH | 14.5 mΩ | 16.7 mΩ | 129 MHz | 3.3 A | 5.4 A | 7.3 A | 7.6 A | 10.1 A |
| 800 nH | 20.5 mΩ | 23.6 mΩ | 94 MHz | 2.5 A | 4.0 A | 5.6 A | 6.3 A | 8.3 A |
| 1.1μH | 31.5 mΩ | 36.3 mΩ | 80 MHz | 2.2 A | 3.5 A | 5.0 A | 4.0 A | 5.4 A |
| 1.2μH | 35.0 mΩ | 40.3 mΩ | 70 MHz | 2.0 A | 3.2 A | 4.8 A | 3.8 A | 5.2 A |
Drawing & Dimension

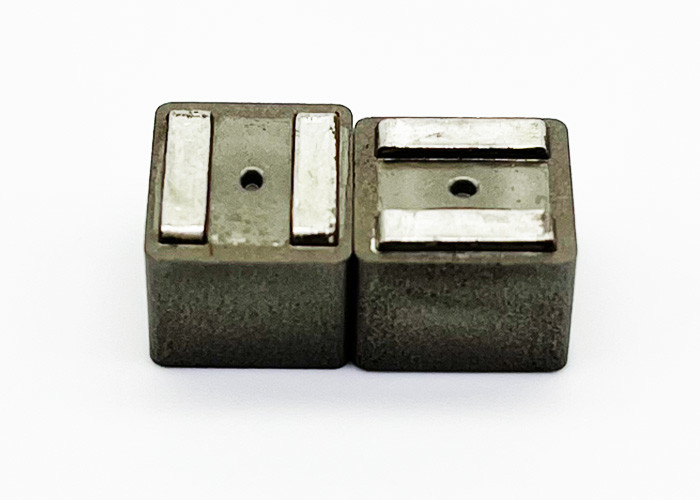

Product Picture
About Shareway
ShareWay Technology CO., LTD. is a specialized manufacturer of PoE Components, products include PoE transformer, PoE RJ45 Magjack, PoE Lan Transformer, PoE Lan filter, and so on.
Established in 1998, we have around 500 staff at present. With the abundant productive capacity, we are able to deliver the goods within a short time. Moreover, we can provide a professional complete solution for PoE applications. Our products are widely used in networking and communication equipment such as HUB, PC cards, Switch, Route, PC Mainboard, SDH, PDH, and xDSL modems.
Company History
- 1997 ShareWay Technology CO., LTD. was founded in Shenzhen, Guangdong, China. Start selling the discrete LAN Transformers, T1/E1 and xDSL Line Transformer.
- 1999 Established production base in Shenzhen, start producing the PoE Transformers, T1/E1 and xDSL Line Transformer.
- 2000 Obtained the ISO9000 certification.
- 2000 Develop PoE RJ45 connector which is with LAN transformers.
- 2002 Develop SMT and Vertical PoE RJ45 connector with magnetic.
- 2008 Develop SMT/DIP Power Inductor and Chokes
- 2012 Develop 10G BaseT Ethernet transformer based on customers expanding requests.
- 2016 Develop SMT High current power inductors, suitable for DC-DC Converters.
- 2021 Develop 5kV AC High voltageSMD isolation transformer based on market request.
Contact us now to have a solution for your project and new design, we are always ready to Share our successful Way with you.
How To Order
1. Please send our sales person the datasheet or part number you need.
2. We will offer the alternative for your reference.
3. The free samples for testing are available before your final approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Shareway's Service
1. 100% tested before shipping.
2. Alternatives for branded like Halo, Pluse, We-online, Chilisin, Coilcraft, etc with better price in same quality.
3. Free samples available.
4. Provide new design for customer.
