Product Name: |
EP7 IBTI Isolated Buck Transformers For Isolated Low Power Drivers 750316170 |
Usage: |
For Isolated Low Power Drivers |
Mount: |
Surface Mount |
Product Type:: |
MID-IBTI Isolated Buck Transformers |
Operating Temperature Range: |
-40°C To +125°C |
Termination Type: |
SMD/SMT |
Inductance: |
2.7 UH |
Package: |
Tape / Reel |
Product Name: |
EP7 IBTI Isolated Buck Transformers For Isolated Low Power Drivers 750316170 |
Usage: |
For Isolated Low Power Drivers |
Mount: |
Surface Mount |
Product Type:: |
MID-IBTI Isolated Buck Transformers |
Operating Temperature Range: |
-40°C To +125°C |
Termination Type: |
SMD/SMT |
Inductance: |
2.7 UH |
Package: |
Tape / Reel |
EP7 IBTI Isolated Buck Transformers for Isolated low power drivers 750316170
Characteristics:
Applications:
ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C.RESISTANCE 1-2 |
@20℃ |
0.015 ohms ±20% |
|
D.C.RESISTANCE 4-5 |
@20℃ |
0.430 ohms ±10% |
|
D.C.RESISTANCE 6-7 |
20°℃ |
1.600 ohms ±10% |
|
D.C.RESISTANCE 7-8 |
@20℃ |
1.600 ohms ±10% |
|
INDUCTANCE 1-2 |
100kHz,100mVAC,Ls |
2.70uH ±10% |
|
SATURATION CURRENT 1-2 |
20%rolloff from initial |
7A |
|
LEAKAGE INDUCTANCE 1-2 |
tie(4+5+6+7+8) 100kHz,10mVAC,Ls |
500nH max |
|
DIELECTRIC 1-8 |
tie(5+6) 1875VAC,1 second |
一 |
|
TURNS RATIO |
(8-7):(1-2) |
8:1,±1% |
|
TURNS RATIO |
(7-6):(1-2) |
8:1,±1% |
|
TURNS RATIO |
(4-5):(1-2) |
3:1,±1% |
EP7 IBTI Isolated Buck Transformers for Isolated low power drivers 750316170
Shape and Dimensions:

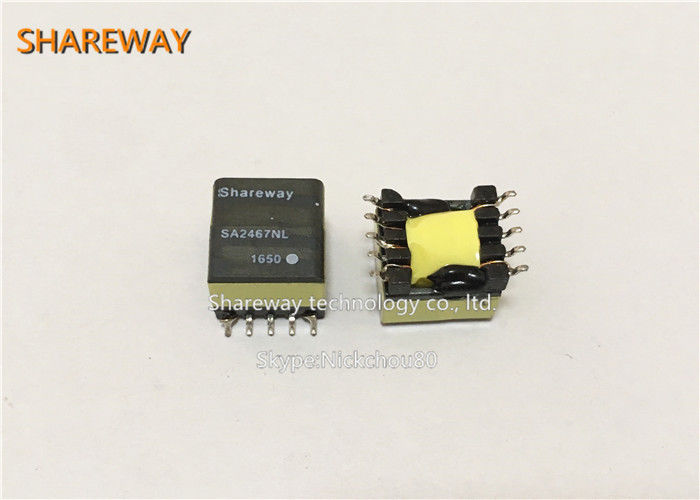

Product picture:
EP7 IBTI Isolated Buck Transformers for Isolated low power drivers 750316170
